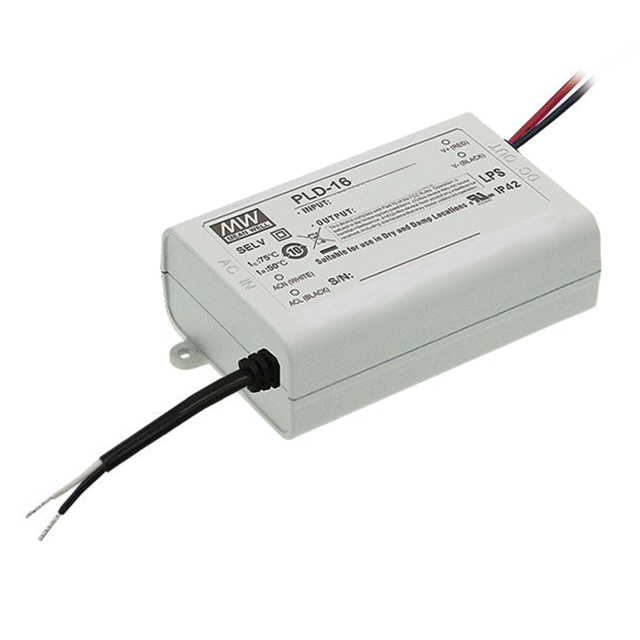

PLD-16-1050A

LED DRVR CC AC/DC 12-16V 1.05A

Manufacturer: MEAN WELL USA Inc.

Categories: LED Drivers

Quality Control: Learn More

MEAN WELL USA Inc. PLD-16-1050A is a 16W Constant Current LED Driver from the PLD-16 series. This AC/DC converter features a single output with an adjustable current of 1.05A, suitable for LED arrays requiring 12V to 16V. With an efficiency of 84% and a power rating of 17W, it operates within a wide input voltage range of 90VAC to 135VAC. The unit incorporates Over-Temperature Protection (OTP) and Short-Circuit Protection (SCP) for enhanced reliability. Rated IP42, it is designed for applications in the architectural lighting and commercial signage industries. The driver measures 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm) and utilizes wire lead terminations. It boasts 3.75 kV of isolation voltage and an operating temperature range of -30°C to 50°C.

Additional Information

Series: PLD-16 (16W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BoxDatasheet:
Technical Details:
FeaturesOTP, SCP
PackagingBox
Size / Dimension3.31"" L x 2.24"" W x 1.16"" H (84.0mm x 57.0mm x 29.5mm)
Voltage - Output12 ~ 16V
TypeConstant Current
Operating Temperature-30°C ~ 50°C
Termination StyleWire Leads
Voltage - Input (Max)135VAC
Approval AgencycURus
RatingsIP42
Efficiency84%
TopologyAC DC Converter
Current - Output (Max)1.05A
Dimming-
Voltage - Input (Min)90VAC
Power (Watts)17 W
Number of Outputs1
Voltage - Isolation3.75 kV
ProgrammableNot Verified
