PLC-60-12
LED DRIVER CC AC/DC 8.4-12V 5AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. PLC-60 series 60W constant current LED driver. This AC/DC converter features a 8.4V to 12V output range with a maximum current of 5A. The PLC-60-12 offers an efficiency of 85% and includes comprehensive protection features such as OCP, OTP, OVP, and SCP. Designed for reliable operation, it accepts input voltages from 90VAC to 264VAC and provides 3.75 kV isolation. The unit is housed in a compact enclosure with terminal block termination, measuring 7.15" L x 2.44" W x 1.38" H, suitable for operation in temperatures from -30°C to 50°C. Key industry approvals include CB, CCC, CE, cURus, PSE, and TUV.
Additional Information
Series: PLC-60 (60W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 7.15"" L x 2.44"" W x 1.38"" H (181.5mm x 62.0mm x 35.0mm) |
| Voltage - Output | 8.4 ~ 12V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 50°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 264VAC |
| Approval Agency | CB, CCC, CE, cURus, PSE, TUV |
| Ratings | - |
| Efficiency | 85% |
| Topology | AC DC Converter |
| Current - Output (Max) | 5A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 60 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

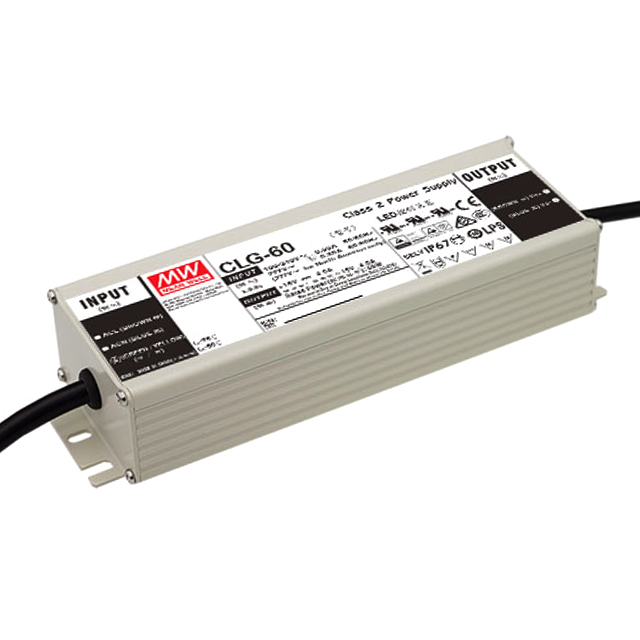

CLG-60-12
