PLC-45-48
LED DRVR CC AC/DC 36-48V 950MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

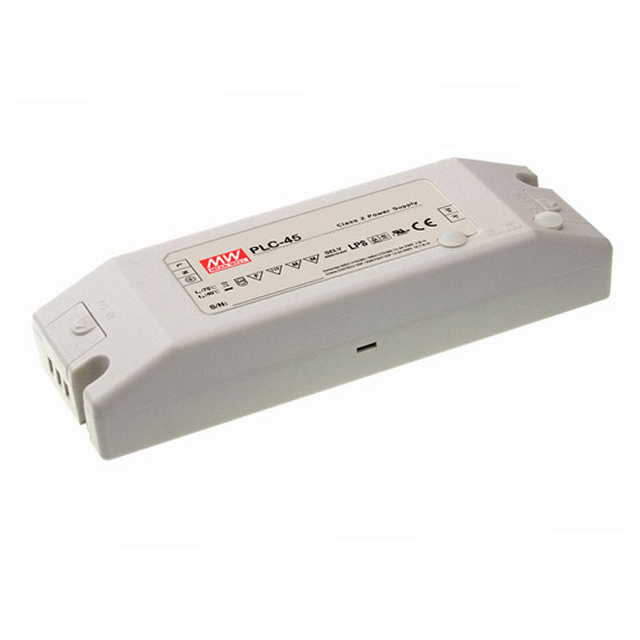

MEAN WELL USA Inc. PLC-45 (45W) series AC/DC LED driver, part number PLC-45-48. This constant current driver delivers 950mA output with an adjustable voltage range of 36-48V, supporting a maximum power of 46W. It features an efficiency of 87.5% and incorporates comprehensive protection circuits including OCP, OTP, OVP, and SCP. The single-output device operates across an input voltage range of 90-264VAC and provides 3.75 kV isolation. Designed for reliable operation in demanding environments, it is suitable for applications in lighting and industrial controls. The unit is housed in a compact form factor measuring 7.15" L x 2.44" W x 1.38" H and utilizes terminal block connections. Approvals include CB, CCC, CE, ENEC, PSE, TUV, and UR. Operating temperature range is -30°C to 50°C.
Additional Information
Series: PLC-45 (45W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 7.15"" L x 2.44"" W x 1.38"" H (181.5mm x 62.0mm x 35.0mm) |
| Voltage - Output | 36 ~ 48V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 50°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 264VAC |
| Approval Agency | CB, CCC, CE, ENEC, PSE, TUV, UR |
| Ratings | - |
| Efficiency | 87.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 950mA |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 46 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
