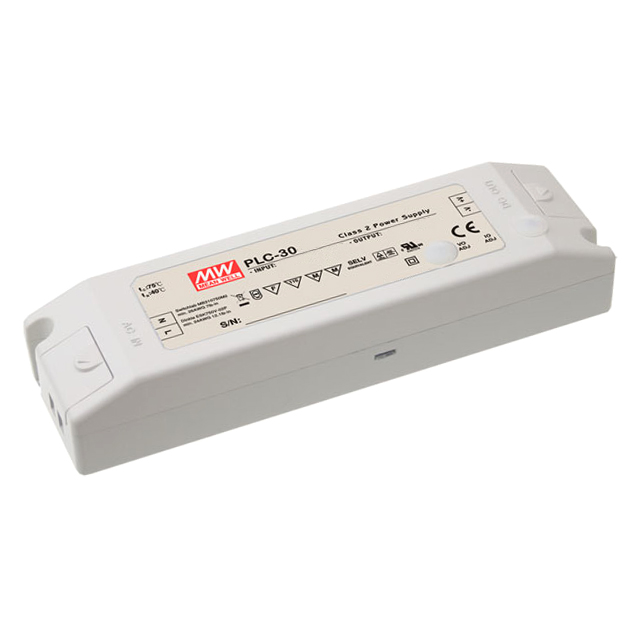

PLC-30-20
LED DRIVER CC AC/DC 14-20V 1.5AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. PLC-30 (30W) series constant current LED driver, part number PLC-30-20. This AC/DC converter provides a single 14 to 20V output with a maximum current of 1.5A, delivering 30W of power. The unit features a terminal block for termination and offers protection against overcurrent (OCP), over-temperature (OTP), over-voltage (OVP), and short-circuit (SCP). With an efficiency of 84%, it operates across an input voltage range of 90-264VAC and provides 3.75 kV isolation. The PLC-30-20 is suitable for applications in lighting, signage, and general illumination. Approval agencies include CB, CCC, CE, cURus, ENEC, PSE, and TUV. Dimensions are 160.0mm x 46.0mm x 30.0mm.
Additional Information
Series: PLC-30 (30W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 6.30"" L x 1.81"" W x 1.18"" H (160.0mm x 46.0mm x 30.0mm) |
| Voltage - Output | 14 ~ 20V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 50°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 264VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC, PSE, TUV |
| Ratings | - |
| Efficiency | 84% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.5A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 30 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
