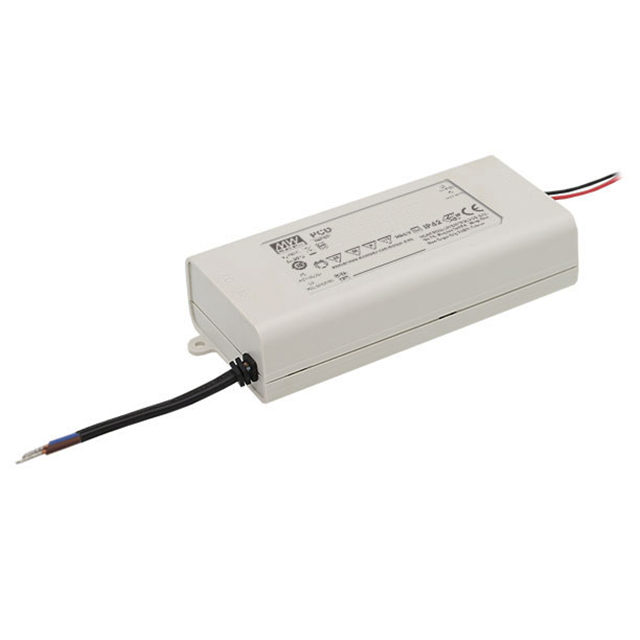

PCD-60-2000B
LED DRIVER CC AC/DC 18-30V 2AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
2A 18 ~ 30V Constant Current LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: PCD-60 (60W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, SCP |
| Packaging | Box |
| Size / Dimension | 5.04"" L x 2.36"" W x 1.24"" H (128.0mm x 60.0mm x 31.5mm) |
| Voltage - Output | 18 ~ 30V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 45°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CE, ENEC |
| Ratings | IP42 |
| Efficiency | 85% |
| Topology | AC DC Converter |
| Current - Output (Max) | 2A |
| Dimming | Triac |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 60 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
