ODLV-65A-48
LED DRIVER CV AC/DC 48V 1.35AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. ODLV-65A-48 is a 65W constant voltage AC/DC LED driver with a 48V output voltage and a maximum output current of 1.35A. This single-output device employs an AC DC converter topology and offers both analog and PWM dimming capabilities. Designed for robust performance, it features OCP and SCP protection, an efficiency of 89%, and an IP67 rating for environmental resilience. The operating temperature range is -20°C to 85°C. Its dimensions are 121.0mm x 77.0mm x 28.5mm. Approved by CB, CCC, CE, cURus, and ENEC, this driver is suitable for applications in general lighting, architectural lighting, and signage. Termination is via wire leads, and the isolation voltage is 3.75 kV.
Additional Information
Series: ODLV-65 (65W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, SCP |
| Packaging | Box |
| Size / Dimension | 4.76"" L x 3.03"" W x 1.12"" H (121.0mm x 77.0mm x 28.5mm) |
| Voltage - Output | 48V |
| Type | Constant Voltage |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | IP67 |
| Efficiency | 89% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.35A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 65 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

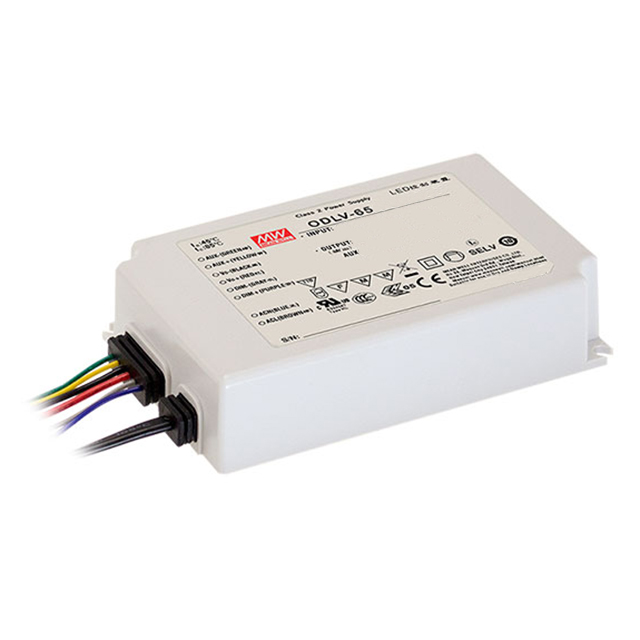

ODLV-65-12
