ODLV-45A-48
O/P 48V0.95AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
The MEAN WELL USA Inc. ODLV-45A-48 is a 45W constant voltage LED driver, part of the ODLV-45 series. This AC/DC converter topology features one output providing 48V at a maximum of 940mA. Designed for demanding applications, it offers an impressive 88% efficiency and operates across a wide input voltage range of 90VAC to 295VAC. The ODLV-45A-48 includes over-current protection (OCP) and short-circuit protection (SCP) for enhanced reliability. Its IP67 rating signifies robust protection against dust and water ingress, making it suitable for industrial and outdoor lighting installations. The driver supports analog and PWM dimming for precise light control. With a 3.75 kV isolation voltage and an operating temperature range of -20°C to 85°C, this component is engineered for durability and performance in challenging environments. Terminated with wire leads, it is supplied in box packaging.
Additional Information
Series: ODLV-45 (45W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, SCP |
| Packaging | Box |
| Size / Dimension | 4.37"" L x 3.03"" W x 1.12"" H (111.0mm x 77.0mm x 28.5mm) |
| Voltage - Output | 48V |
| Type | Constant Voltage |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC |
| Ratings | IP67 |
| Efficiency | 88% |
| Topology | AC DC Converter |
| Current - Output (Max) | 940mA |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 45 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
ODLV-45-12
O/P 12V3.0A
ODLV-45-24
O/P 24V1.88A

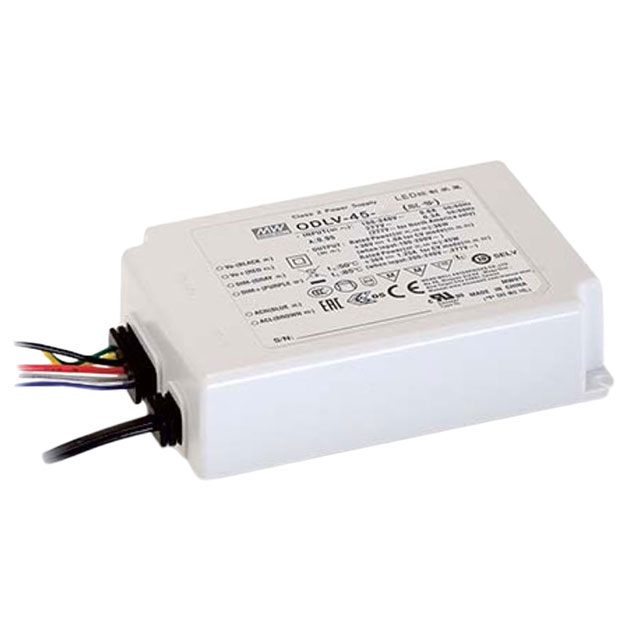

ODLV-45-36
