ODLC-65-1400
LED DRIVER CC AC/DC 34-46V 1.4AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

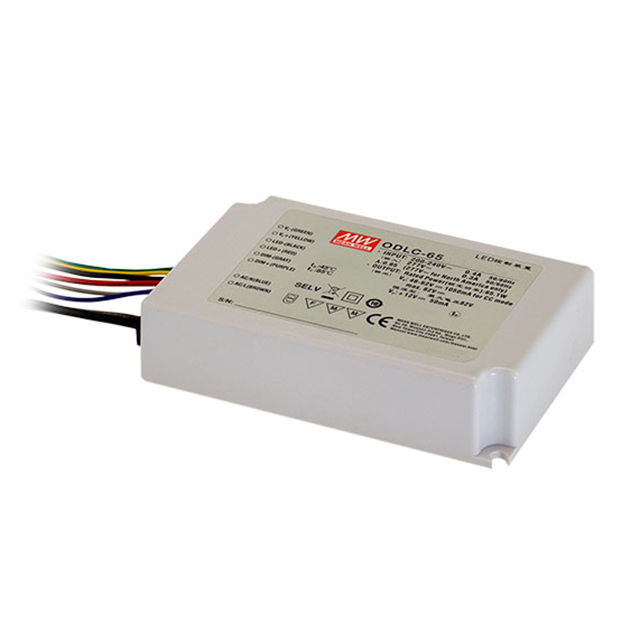

MEAN WELL USA Inc. ODLC-65 series constant current LED driver, part number ODLC-65-1400. This AC/DC converter provides a stable 1.4A output current for LED loads requiring a voltage range of 34V to 46V. It features analog and PWM dimming capabilities, with an efficiency of 85% and a maximum power output of 64W. The unit is equipped with short circuit protection (SCP) and offers 3.75 kV isolation voltage. Designed for robust operation, it boasts an IP67 rating and operates within an ambient temperature range of -20°C to 85°C. Input voltage tolerance spans from 180VAC to 295VAC. Termination is via wire leads. This component is suitable for applications in the general lighting and architectural lighting sectors, among others.
Additional Information
Series: ODLC-65 (65W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Box |
| Size / Dimension | 4.76"" L x 3.03"" W x 1.12"" H (121.0mm x 77.0mm x 28.5mm) |
| Voltage - Output | 34 ~ 46V |
| Type | Constant Current |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | IP67 |
| Efficiency | 85% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.4A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 64 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
