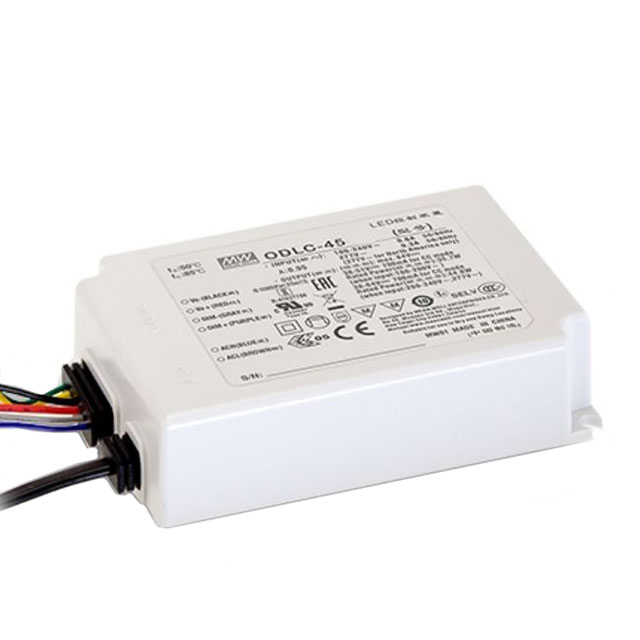

ODLC-45-500DA
LED DRIVER CC AC/DCManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. ODLC-45-500DA is a 45W Constant Current LED Driver from the ODLC-45 series. This AC/DC converter features one output with a maximum current of 1.05A and an adjustable output voltage range of 19-32V. The unit offers both analog and PWM dimming capabilities and boasts an efficiency of 83%. Designed for robust operation, it includes Short Circuit Protection (SCP) and is rated IP67 for environmental resilience. Input voltage ranges from 90VAC to 295VAC, with an isolation voltage of 3.75kV. Termination is via wire leads. This component is suitable for applications in general lighting and architectural lighting, adhering to standards such as UL 8750. The dimensions are 111.0mm x 77.0mm x 28.5mm. Operating temperature range is -20°C to 85°C.
Additional Information
Series: ODLC-45 (45W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Box |
| Size / Dimension | 4.37"" L x 3.03"" W x 1.12"" H (111.0mm x 77.0mm x 28.5mm) |
| Voltage - Output | 19 ~ 32V |
| Type | Constant Current |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | IP67 |
| Efficiency | 83% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.05A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 33 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Standard Number | UL 8750 |
| Programmable | Not Verified |
