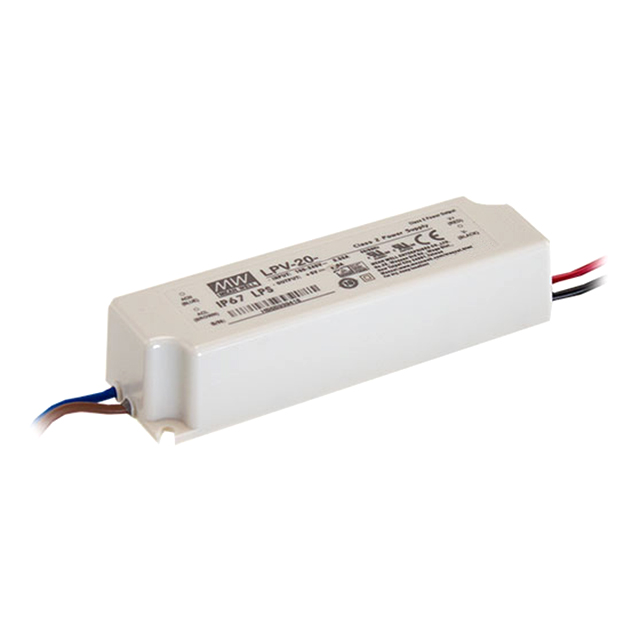

LPV-20-15
LED DRIVER CV AC/DC 15V 1.33AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
1.33A 15V Constant Voltage LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: LPV-20 (20W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 4.65"" L x 1.38"" W x 1.02"" H (118.0mm x 35.0mm x 26.0mm) |
| Voltage - Output | 15V |
| Type | Constant Voltage |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 264VAC |
| Approval Agency | CE, cURus, TUV |
| Ratings | IP67 |
| Efficiency | 83% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.33A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 20 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3 kV |
| Programmable | Not Verified |
Request a Quote
