LPLC-18-700
LED DRIVER CC AC/DC 6-25V 700MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

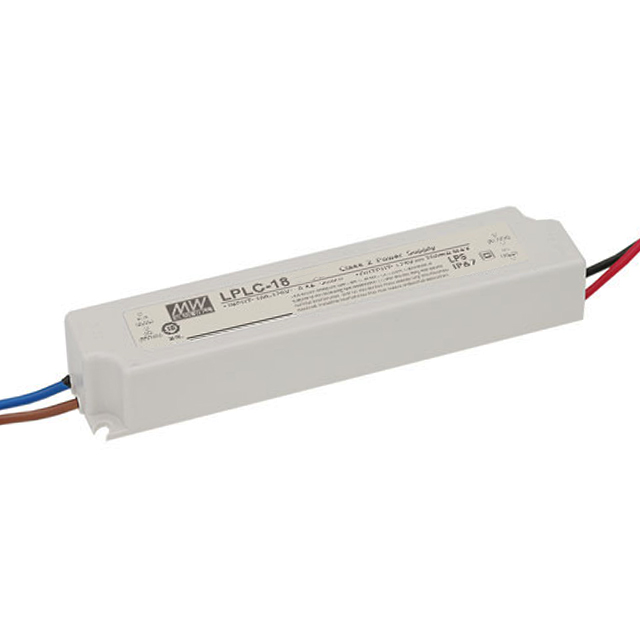

The MEAN WELL USA Inc. LPLC-18 series constant current LED driver is a 700mA AC/DC converter designed for 18W applications. This unit offers a single output with an adjustable voltage range of 6V to 25V, accommodating a 700mA maximum output current. Featuring an AC input range of 90VAC to 132VAC, it boasts an efficiency of 80% and an isolation voltage of 3 kV. Integrated protections include Over Temperature Protection (OTP) and Over Voltage Protection (OVP). The LPLC-18 series is rated IP67, indicating robust protection against dust and water ingress, and operates within a temperature range of -30°C to 70°C. Its dimensions are 140.0mm x 30.0mm x 22.0mm, with wire lead termination. This component is suitable for general lighting, architectural lighting, and signage applications.
Additional Information
Series: LPLC-18 (18W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, OVP |
| Packaging | Box |
| Size / Dimension | 5.51"" L x 1.18"" W x 0.87"" H (140.0mm x 30.0mm x 22.0mm) |
| Voltage - Output | 6 ~ 25V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 132VAC |
| Approval Agency | CE |
| Ratings | IP67 |
| Efficiency | 80% |
| Topology | AC DC Converter |
| Current - Output (Max) | 700mA |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 18 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3 kV |
| Programmable | Not Verified |
