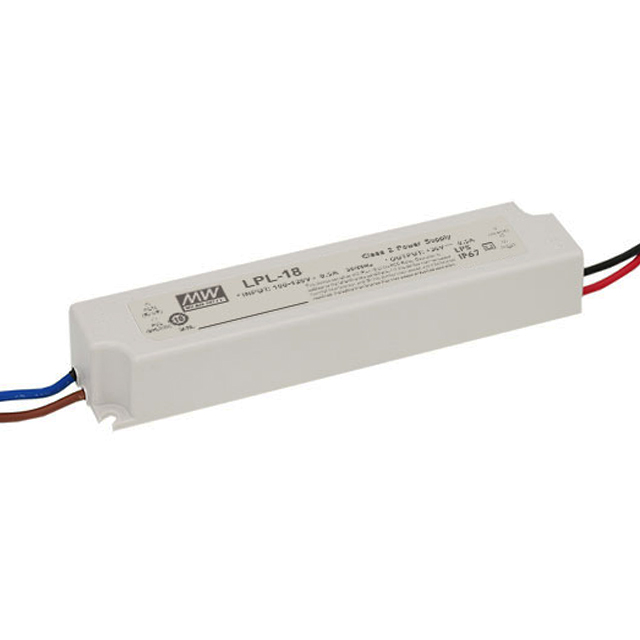

LPL-18-12
LED DRIVER CV AC/DC 12V 1.5AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. LPL-18 (18W) series Constant Voltage AC/DC LED Driver, part number LPL-18-12. This 18W unit provides a 12V output at a maximum of 1.5A, featuring an AC DC Converter topology with a single output. Designed for reliability, it incorporates Over Current Protection (OCP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP). The LPL-18-12 boasts an efficiency of 80% and operates within a wide temperature range of -30°C to 70°C. Its IP67 rating ensures suitability for demanding environments. Input voltage ranges from 90VAC to 132VAC, with 3kV isolation. Termination is via wire leads. This component is commonly specified in lighting and signage applications.
Additional Information
Series: LPL-18 (18W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 5.51"" L x 1.18"" W x 0.87"" H (140.0mm x 30.0mm x 22.0mm) |
| Voltage - Output | 12V |
| Type | Constant Voltage |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 132VAC |
| Approval Agency | CE |
| Ratings | IP67 |
| Efficiency | 80% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.5A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 18 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3 kV |
| Programmable | Not Verified |
