LPFH-60-15
LED DRVR CC/CV AC/DC 9-15V 2.5AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

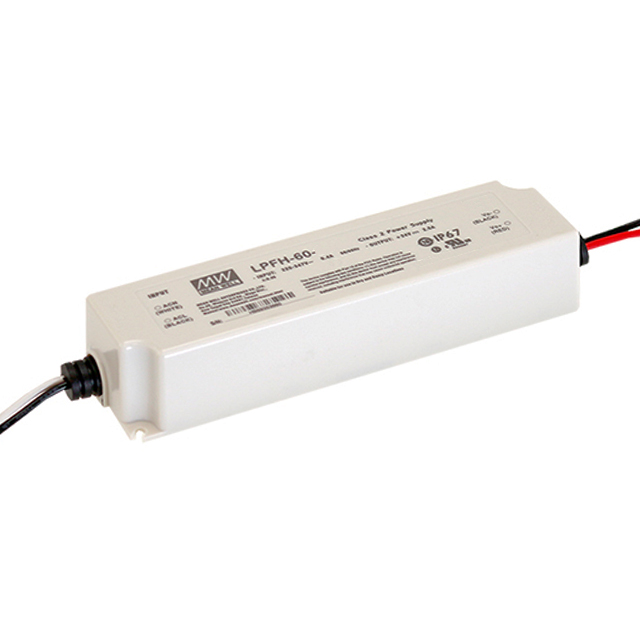

MEAN WELL USA Inc. LPFH-60-15 is a 60W AC/DC LED driver featuring dual-mode constant current (CC) and constant voltage (CV) operation. This unit provides a regulated output of 9-15V with a maximum current of 2.5A. Designed for versatility, it accepts a wide input voltage range from 200VAC to 400VAC, with an isolation voltage of 3kV. The LPFH-60 series driver boasts an efficiency of 87% and incorporates comprehensive protections including Over Current Protection (OCP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP). Its robust construction meets IP67 ratings for environmental resilience, operating across a temperature range of -40°C to 90°C. The driver is suitable for applications in general lighting, signage, and architectural lighting. Termination is via wire leads.
Additional Information
Series: LPFH-60 (60W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 6.40"" L x 1.69"" W x 1.26"" H (162.5mm x 43.0mm x 32.0mm) |
| Voltage - Output | 9 ~ 15V |
| Type | Constant Current, Voltage |
| Operating Temperature | -40°C ~ 90°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 400VAC |
| Approval Agency | cURus |
| Ratings | IP67 |
| Efficiency | 87% |
| Topology | AC DC Converter |
| Current - Output (Max) | 2.5A |
| Dimming | - |
| Voltage - Input (Min) | 200VAC |
| Power (Watts) | 60 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3 kV |
| Programmable | Not Verified |
