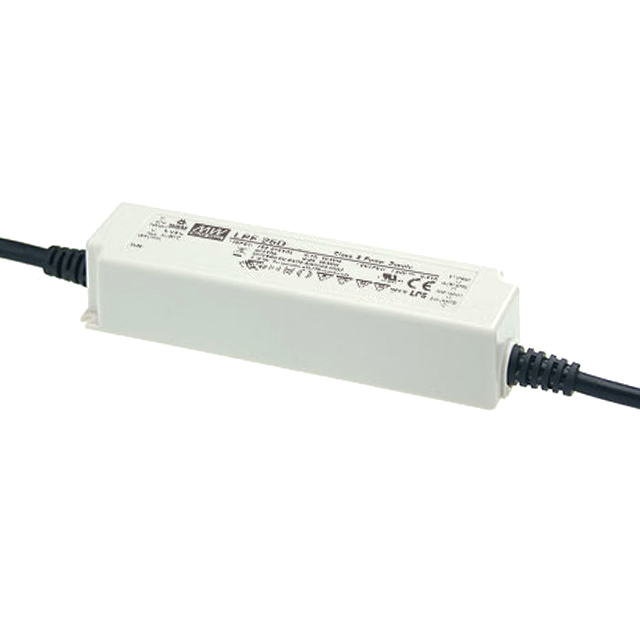

LPF-25D-24
LED DRVR CC AC/DC 13.2-24V 1.05AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
1.05A 13.2 ~ 24V Constant Current LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: LPF-25D (25W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 5.83"" L x 1.57"" W x 1.26"" H (148.0mm x 40.0mm x 32.0mm) |
| Voltage - Output | 13.2 ~ 24V |
| Type | Constant Current |
| Operating Temperature | -35°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC, PSE |
| Ratings | IP67 |
| Efficiency | 85.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.05A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 25 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
