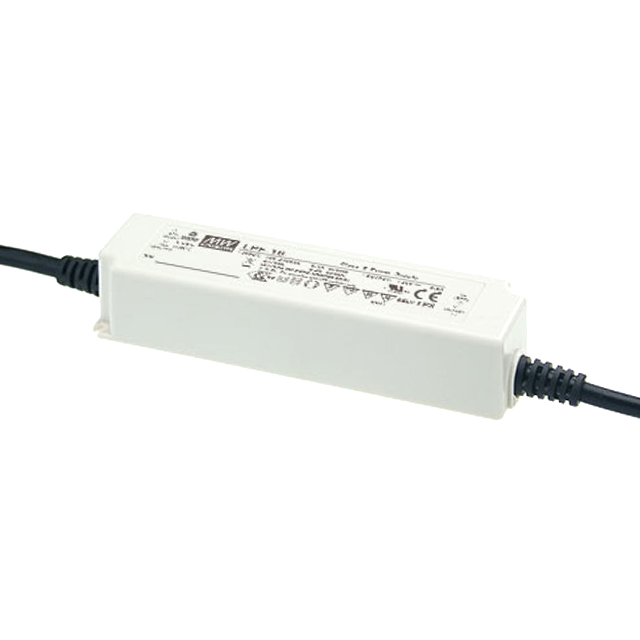

LPF-16-12
LED DVR CC/CV ACDC 6.6-12V 1.34AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
1.34A 6.6 ~ 12V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: LPF-16 (16W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 5.83"" L x 1.57"" W x 1.26"" H (148.0mm x 40.0mm x 32.0mm) |
| Voltage - Output | 6.6 ~ 12V |
| Type | Constant Current, Voltage |
| Operating Temperature | -35°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC, PSE |
| Ratings | IP30 |
| Efficiency | 84% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.34A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 16 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
