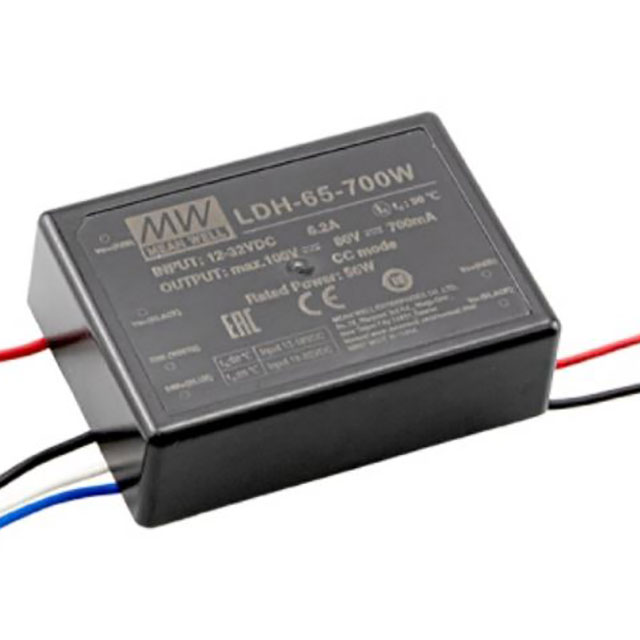

LDH-65-700W
DC-DC STEP-UP CONSTANT CURRENT LManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
700mA 12.5 ~ 80V Constant Current LED Driver Boost Topology 1 Output
Additional Information
Series: LDH-65 (65W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OVP, SCP |
| Packaging | Box |
| Size / Dimension | 2.95"" L x 2.09"" W x 0.89"" H (75.0mm x 53.0mm x 22.7mm) |
| Voltage - Output | 12.5 ~ 80V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 60°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 32V |
| Approval Agency | CE, EAC |
| Ratings | - |
| Efficiency | 95% |
| Topology | Boost |
| Current - Output (Max) | 700mA |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 9.5V |
| Power (Watts) | 56 W |
| Number of Outputs | 1 |
| Programmable | Not Verified |
