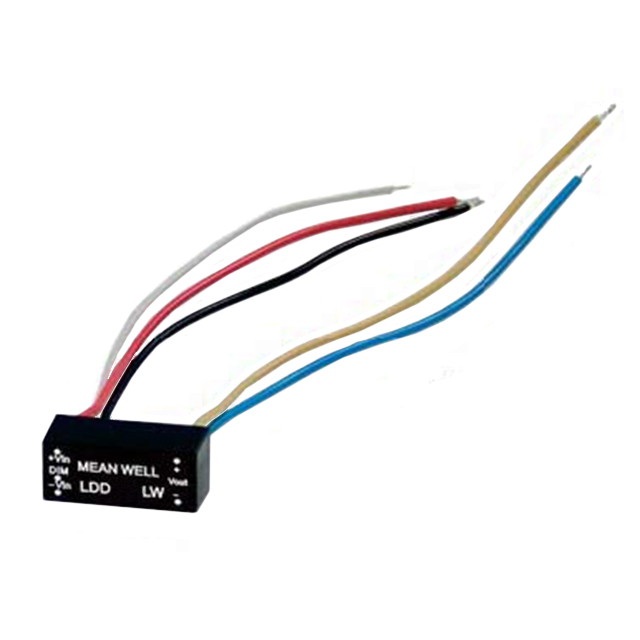

LDD-300LW
LED DRIVER CC BUCK 2-30V 300MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. LDD-L series LDD-300LW constant current LED driver. This buck topology driver offers a 300mA output current with an adjustable output voltage range of 2V to 30V. Featuring PWM dimming, remote on/off functionality, and integrated output short-circuit protection (SCP) and over-temperature protection (OTP), the LDD-300LW is designed for reliable performance. With an efficiency of 95% and an IP67 rating, it operates effectively across an ambient temperature range of -40°C to 85°C. Input voltage ranges from 9V to 36V. The compact dimensions are 22.6mm x 9.9mm x 8.9mm. This component is suitable for applications in general lighting and signage.
Additional Information
Series: LDD-LRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Remote On/Off, OTP, SCP |
| Packaging | Tray |
| Size / Dimension | 0.89"" L x 0.39"" W x 0.35"" H (22.6mm x 9.9mm x 8.9mm) |
| Voltage - Output | 2 ~ 30V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 36V |
| Approval Agency | CE |
| Ratings | IP67 |
| Efficiency | 95% |
| Topology | Buck |
| Current - Output (Max) | 300mA |
| Dimming | PWM |
| Voltage - Input (Min) | 9V |
| Number of Outputs | 1 |
| Programmable | Not Verified |
