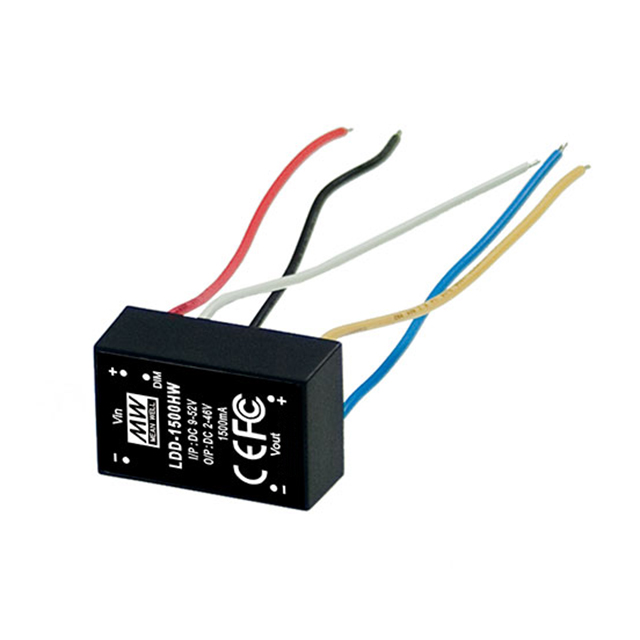

LDD-1500HW
LED DRIVER CC BUCK 2-46V 1.5AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. LDD-H Series LDD-1500HW is a constant current LED driver with a buck topology. This single-output device delivers up to 1.5A with an adjustable output voltage range of 2V to 46V. Featuring PWM dimming and a high efficiency of 97%, it is designed for optimal power management. The LDD-1500HW incorporates essential protection features including Remote On/Off, Over-Temperature Protection (OTP), and Short-Circuit Protection (SCP). Its compact dimensions of 31.8mm x 20.3mm x 12.2mm and wire lead termination facilitate integration into various applications. The driver operates within a wide input voltage range of 9V to 52V and is rated IP67, making it suitable for demanding environments. This component finds application in general lighting, architectural lighting, and display backlighting sectors.
Additional Information
Series: LDD-HRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Remote On/Off, OTP, SCP |
| Packaging | Tube |
| Size / Dimension | 1.25"" L x 0.80"" W x 0.48"" H (31.8mm x 20.3mm x 12.2mm) |
| Voltage - Output | 2 ~ 46V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 52V |
| Approval Agency | CE |
| Ratings | IP67 |
| Efficiency | 97% |
| Topology | Buck |
| Current - Output (Max) | 1.5A |
| Dimming | PWM |
| Voltage - Input (Min) | 9V |
| Number of Outputs | 1 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

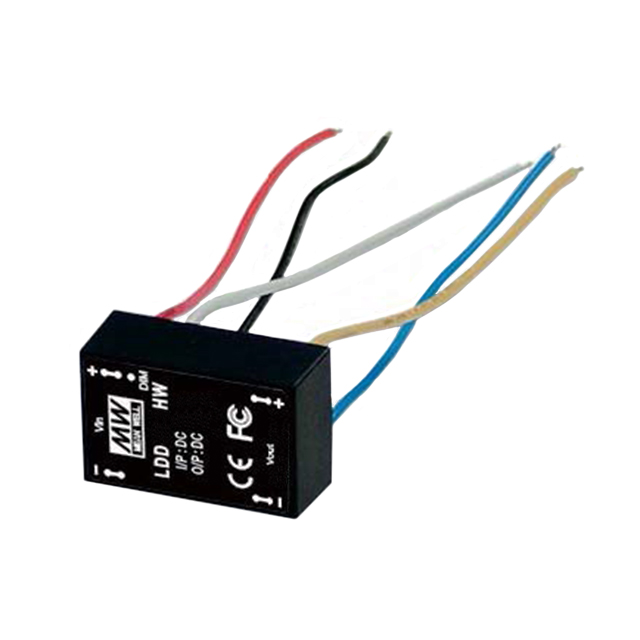

LDD-1000HW
LED DRIVER CC BUCK 2-52V 1A

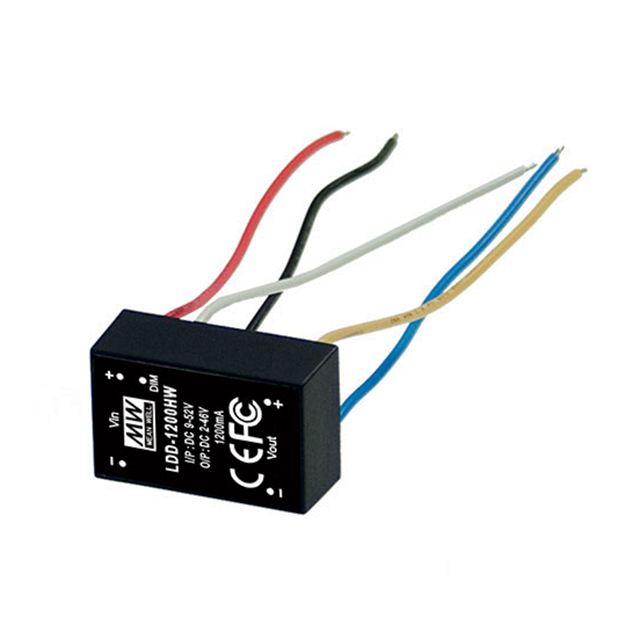

LDD-1200HW
