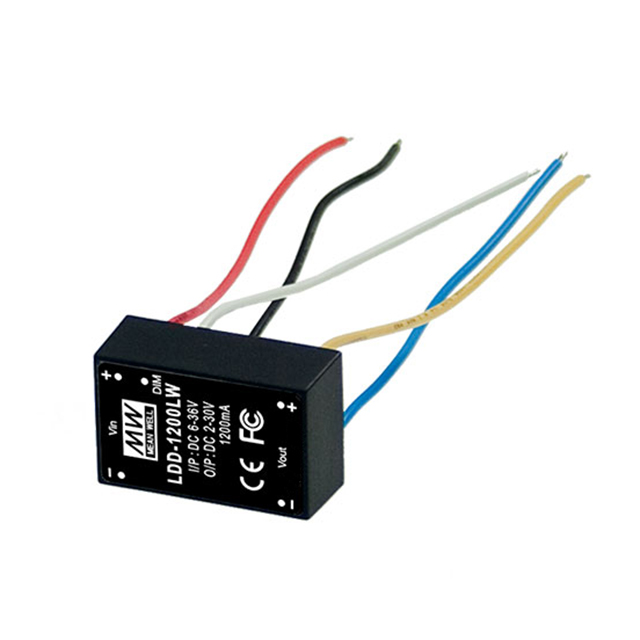

LDD-1200LW
LED DRIVER CC BUCK 2-30V 1.2AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. LDD-L series constant current LED driver, part number LDD-1200LW. This buck topology driver delivers 1.2A output current with an adjustable voltage range of 2V to 30V. Featuring PWM dimming and a high efficiency of 95%, it includes integrated protection against Over-Temperature (OTP) and Short-Circuit (SCP), along with remote On/Off functionality. The driver operates from a 6V to 36V input voltage range and is rated IP67, making it suitable for demanding environments. Its compact dimensions (31.8mm x 20.3mm x 12.2mm) and wire lead termination facilitate integration into various applications, including general lighting, architectural lighting, and display backlighting.
Additional Information
Series: LDD-LRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Remote On/Off, OTP, SCP |
| Packaging | Tray |
| Size / Dimension | 1.25"" L x 0.80"" W x 0.48"" H (31.8mm x 20.3mm x 12.2mm) |
| Voltage - Output | 2 ~ 30V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 36V |
| Approval Agency | CE |
| Ratings | IP67 |
| Efficiency | 95% |
| Topology | Buck |
| Current - Output (Max) | 1.2A |
| Dimming | PWM |
| Voltage - Input (Min) | 6V |
| Number of Outputs | 1 |
| Programmable | Not Verified |
