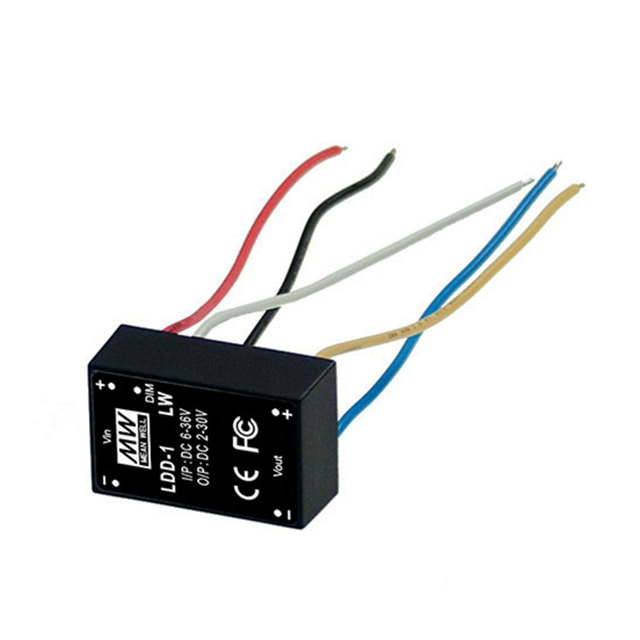

LDD-1000LW
LED DRIVER CC BUCK 2-30V 1AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. LDD-L Series LDD-1000LW is a 1A constant current LED driver with a buck topology. This single-output device operates with an input voltage range of 6V to 36V and provides an adjustable output voltage from 2V to 30V. Featuring PWM dimming capabilities and an impressive 95% efficiency, the LDD-1000LW is designed for demanding applications. Integrated protections include OTP (Over-Temperature Protection) and SCP (Short-Circuit Protection), along with remote on/off functionality. Its robust construction, with IP67 rating, and wire lead termination style make it suitable for industrial and outdoor lighting, signage, and architectural lighting systems. The unit measures 31.8mm x 20.3mm x 12.2mm and operates across a wide temperature range of -40°C to 85°C.
Additional Information
Series: LDD-LRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Remote On/Off, OTP, SCP |
| Packaging | Tube |
| Size / Dimension | 1.25"" L x 0.80"" W x 0.48"" H (31.8mm x 20.3mm x 12.2mm) |
| Voltage - Output | 2 ~ 30V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 36V |
| Approval Agency | CE |
| Ratings | IP67 |
| Efficiency | 95% |
| Topology | Buck |
| Current - Output (Max) | 1A |
| Dimming | PWM |
| Voltage - Input (Min) | 6V |
| Number of Outputs | 1 |
| Programmable | Not Verified |
