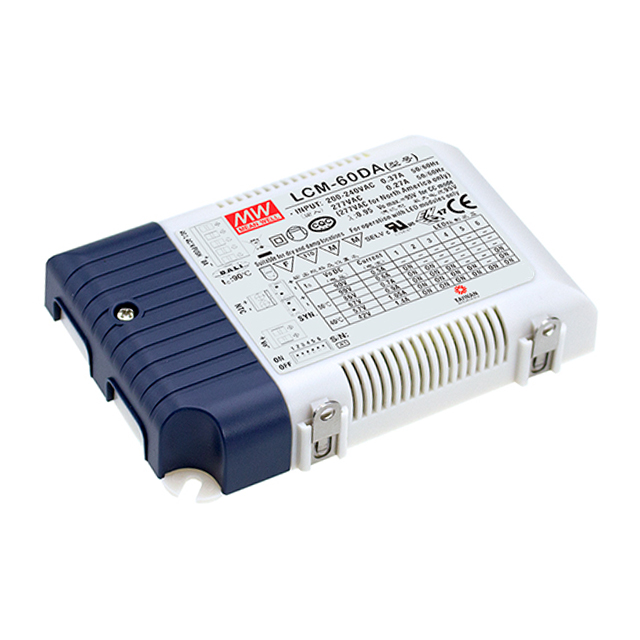

LCM-60DA
LED DRIVER CC AC/DC 2-90V 1.4AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. LCM-60DA (60W) Series constant current LED driver, offering a 1.4A maximum output current with an adjustable output voltage range of 2V to 90VDC. This AC/DC converter topology features DALI dimming capabilities and achieves up to 92% efficiency. Integrated protection features include Over-Temperature Protection (OTP), Over-Voltage Protection (OVP), and Short-Circuit Protection (SCP). The unit is designed for a wide input voltage range of 180VAC to 295VAC, with an isolation voltage of 3.75 kV. Its compact dimensions are 123.5mm x 81.5mm x 23.0mm, with terminal block termination. This component is suitable for general lighting applications. Approvals include CB, CCC, CE, cURus, and ENEC.
Additional Information
Series: LCM-60DA (60W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 4.86"" L x 3.21"" W x 0.91"" H (123.5mm x 81.5mm x 23.0mm) |
| Voltage - Output | 2 ~ 90V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 90°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 92% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.4A |
| Dimming | DALI |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 60 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
