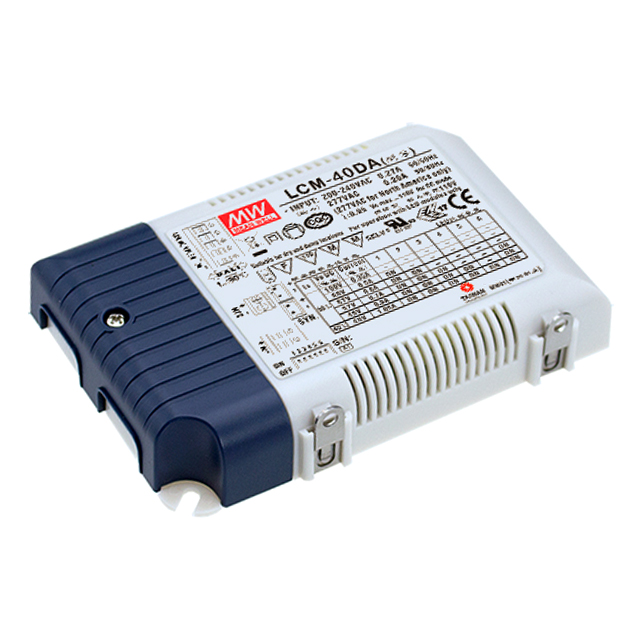

LCM-40DA
LED DRVR CC AC/DC 2-100V 1.05AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
The MEAN WELL USA Inc. LCM-40DA series LED driver is a 40W constant current AC/DC power supply. This unit delivers 1.05A output current and features a wide output voltage range from 2V to 100V. Designed with a DALI dimming interface, it offers precise control for LED lighting applications. The LCM-40DA series employs an AC DC converter topology, achieving up to 91% efficiency. Integrated protection features include Over-Temperature Protection (OTP), Over-Voltage Protection (OVP), and Short-Circuit Protection (SCP). Its compact dimensions of 123.5mm x 81.5mm x 23.0mm and terminal block termination facilitate integration into various systems. Approved by CB, CCC, CE, cURus, and ENEC, this driver is suitable for demanding applications in the general lighting and architectural lighting industries. The unit operates within a temperature range of -30°C to 90°C.
Additional Information
Series: LCM-40DA (40W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 4.86"" L x 3.21"" W x 0.91"" H (123.5mm x 81.5mm x 23.0mm) |
| Voltage - Output | 2 ~ 100V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 90°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 91% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.05A |
| Dimming | DALI |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 42 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
