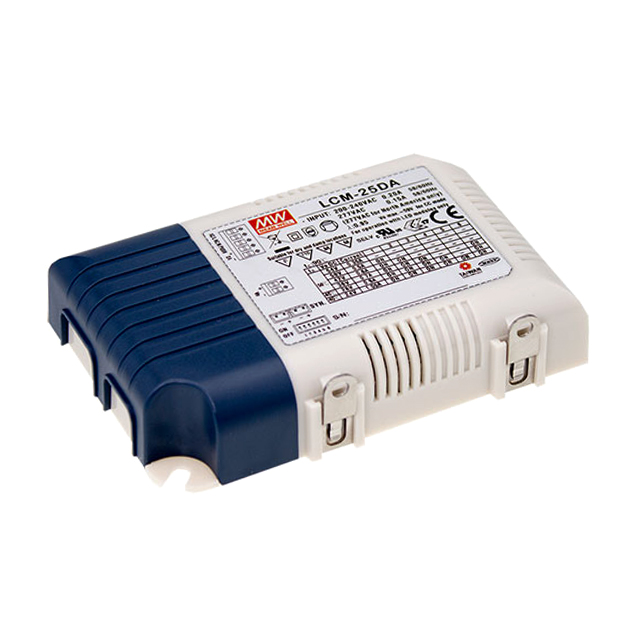

LCM-25DA
LED DRIVER CC AC/DC 6-54V 1.05AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. LCM-25DA is a 25W constant current LED driver, delivering 1.05A output with an adjustable voltage range of 6V to 54V. This AC/DC converter topology features DALI dimming capabilities and achieves 86% efficiency. Integrated protection functions include over-temperature protection (OTP) and short-circuit protection (SCP). The driver is designed for a wide input voltage range from 180VAC to 277VAC and provides 3.75 kV isolation. Applications span lighting control systems and general illumination within the commercial and industrial sectors. The unit is packaged in a box with terminal block termination and measures 105.0mm x 68.0mm x 23.0mm. Approvals include CB, CCC, CE, cURus, and ENEC.
Additional Information
Series: LCM-25DA (25W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, SCP |
| Packaging | Box |
| Size / Dimension | 4.13"" L x 2.68"" W x 0.91"" H (105.0mm x 68.0mm x 23.0mm) |
| Voltage - Output | 6 ~ 54V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 85°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 277VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 86% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.05A |
| Dimming | DALI |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 25 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
