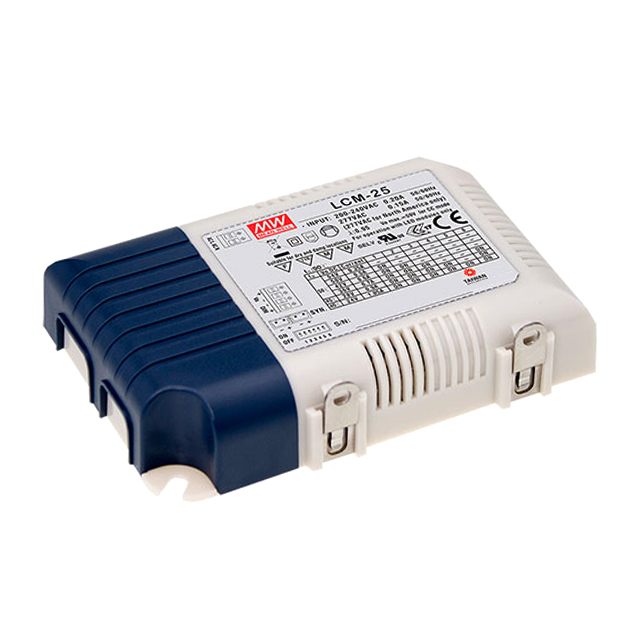

LCM-25
LED DRIVER CC AC/DC 6-54V 1.05AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
1.05A 6 ~ 54V Constant Current LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: LCM-25 (25W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, SCP |
| Packaging | Box |
| Size / Dimension | 4.13"" L x 2.68"" W x 0.91"" H (105.0mm x 68.0mm x 23.0mm) |
| Voltage - Output | 6 ~ 54V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 85°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 277VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 86% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.05A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 25 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
