IDPV-65A-12
O/P 12V4.2AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

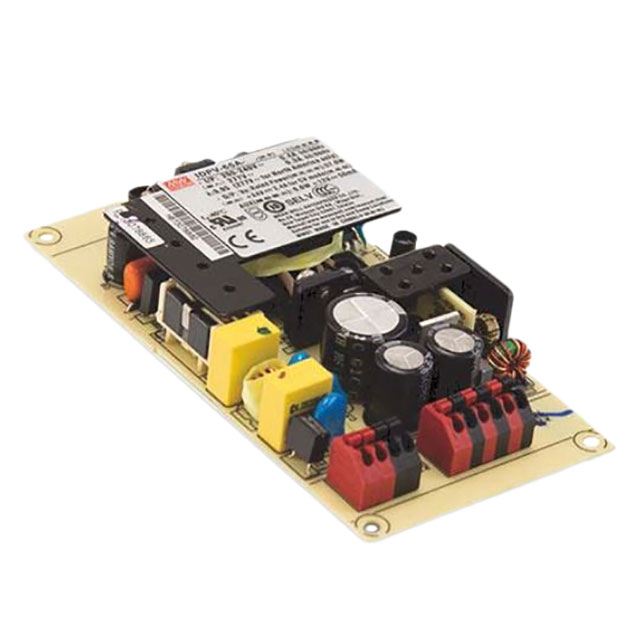

MEAN WELL USA Inc. IDPV-65A-12 is a 65W constant voltage AC/DC LED driver. This 12V output driver delivers a maximum current of 4.2A, offering 50W of rated power. It features analog and PWM dimming capabilities and incorporates Over Current Protection (OCP) and Short Circuit Protection (SCP). The unit operates within an input voltage range of 180VAC to 295VAC, with a high isolation voltage of 3.75 kV. The IDPV-65 series driver boasts an efficiency of 85% and is suitable for a wide range of applications including general lighting, signage, and architectural lighting. Dimensions are 130.0mm x 67.5mm x 22.0mm, with terminal block termination style. Compliance includes CB, CCC, CE, cURus, and ENEC. Operating temperature range is -20°C to 40°C.
Additional Information
Series: IDPV-65 (65W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, SCP |
| Packaging | Box |
| Size / Dimension | 5.12"" L x 2.66"" W x 0.87"" H (130.0mm x 67.5mm x 22.0mm) |
| Voltage - Output | 12V |
| Type | Constant Voltage |
| Operating Temperature | -20°C ~ 40°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 85% |
| Topology | AC DC Converter |
| Current - Output (Max) | 4.2A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 50 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
