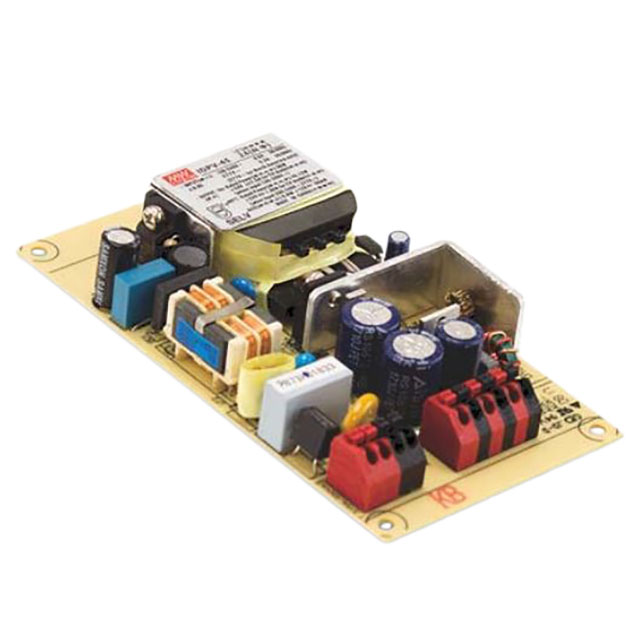

IDPV-45A-12
O/P 12V3.0AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. IDPV-45A-12 is a 45W constant voltage LED driver with a 12V, 3A output. This AC DC converter topology features a single output and is suitable for applications requiring stable voltage regulation for LED illumination. The unit offers a wide input voltage range from 90VAC to 295VAC and boasts an efficiency of 84%. Protection features include Over Current Protection (OCP) and Short Circuit Protection (SCP). The driver operates within an ambient temperature range of -20°C to 40°C and provides 3.75 kV isolation. Its compact dimensions measure 120.0mm x 66.5mm x 22.0mm with terminal block termination. This component is commonly utilized in general lighting, architectural lighting, and signage applications. It supports analog and PWM dimming methods.
Additional Information
Series: IDPV-45 (45W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, SCP |
| Packaging | Box |
| Size / Dimension | 4.72"" L x 2.62"" W x 0.87"" H (120.0mm x 66.5mm x 22.0mm) |
| Voltage - Output | 12V |
| Type | Constant Voltage |
| Operating Temperature | -20°C ~ 40°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 84% |
| Topology | AC DC Converter |
| Current - Output (Max) | 3A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 36 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
