IDPV-25A-48
I/P:90-295VAC O/P:+48V 0.52AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

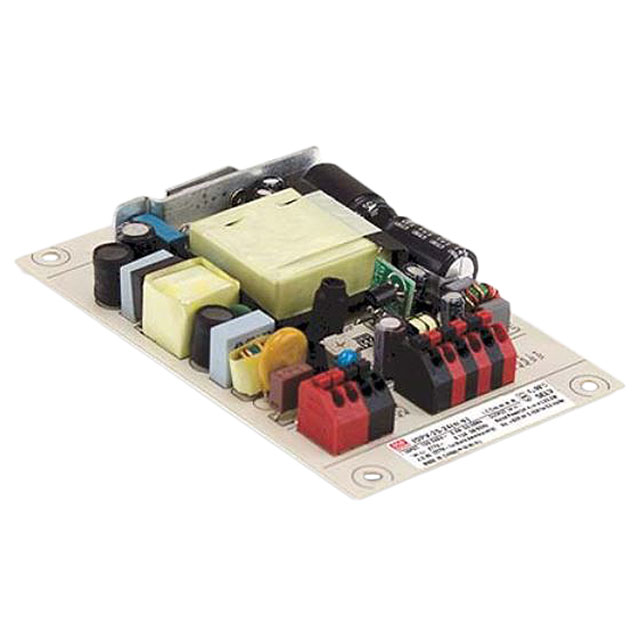

MEAN WELL USA Inc. IDPV-25A-48 is a 25W constant voltage AC DC converter LED driver. This single-output unit operates with an input voltage range of 90-295VAC and provides a regulated 48VDC output at a maximum of 520mA. The IDPV-25 series driver offers efficient operation with 83% efficiency and includes OCP (Over Current Protection) and SCP (Short Circuit Protection) for enhanced reliability. Designed for demanding applications, it features robust isolation of 3.75 kV and supports both analog and PWM dimming. The unit is packaged in a compact enclosure measuring 4.51" x 2.85" x 0.79" with terminal block terminations for easy integration. Approvals include CB, CCC, CE, cURus, and ENEC, making it suitable for use in lighting, automation, and industrial control systems.
Additional Information
Series: IDPV-25 (25W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, SCP |
| Packaging | Box |
| Size / Dimension | 4.51"" L x 2.85"" W x 0.79"" H (114.5mm x 72.5mm x 20.0mm) |
| Voltage - Output | 48V |
| Type | Constant Voltage |
| Operating Temperature | -20°C ~ 45°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 83% |
| Topology | AC DC Converter |
| Current - Output (Max) | 520mA |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 25 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
