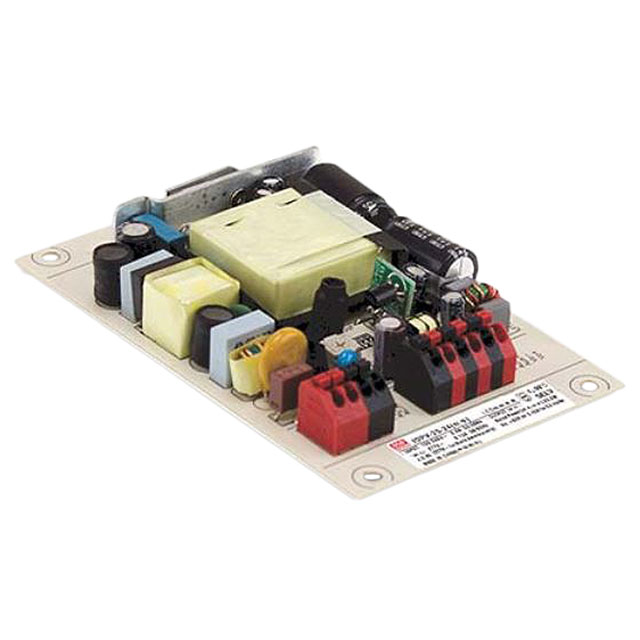

IDPV-25A-36
I/P:90-295VAC O/P:+36V 0.7AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. IDPV-25A-36 is a 25W Constant Voltage AC DC Converter LED Driver with a universal input range of 90-295VAC. This single-output device delivers a stable 36V at a maximum current of 700mA. Designed for efficient operation, it achieves 82% efficiency and features OCP and SCP protection. The IDPV-25 series driver supports both Analog and PWM dimming methods. Its compact dimensions, 114.5mm x 72.5mm x 20.0mm, and terminal block termination style facilitate integration into various systems. The unit offers 3.75 kV isolation and operates within a temperature range of -20°C to 45°C. Approvals include CB, CCC, CE, cURus, and ENEC, making it suitable for applications in general lighting and signage.
Additional Information
Series: IDPV-25 (25W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, SCP |
| Packaging | Box |
| Size / Dimension | 4.51"" L x 2.85"" W x 0.79"" H (114.5mm x 72.5mm x 20.0mm) |
| Voltage - Output | 36V |
| Type | Constant Voltage |
| Operating Temperature | -20°C ~ 45°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 82% |
| Topology | AC DC Converter |
| Current - Output (Max) | 700mA |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 25 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
