IDPV-25A-24
LED POWER SUPPLIES 25.2W 24V 1.0Manufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

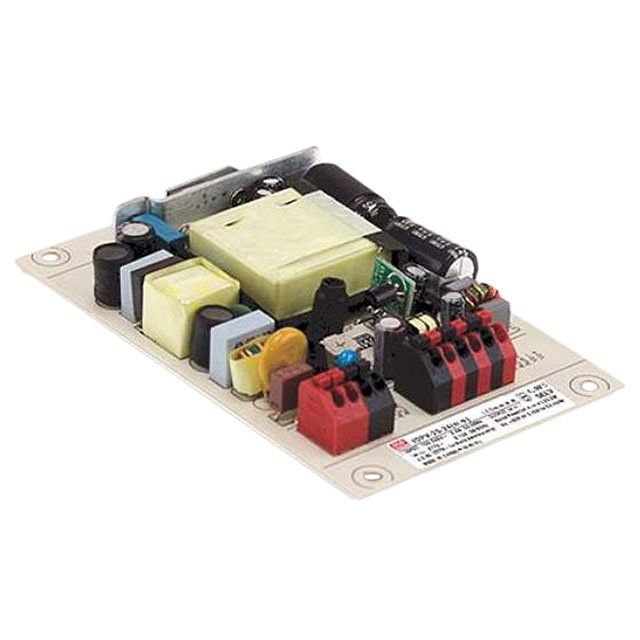

MEAN WELL USA Inc. IDPV-25A-24 is a 25W Constant Voltage LED Driver from the IDPV-25 series. This AC DC Converter topology features a single output providing 24V at a maximum current of 1.05A. Designed for efficient operation with 81% efficiency, it includes Over Current Protection (OCP) and Short Circuit Protection (SCP) for enhanced reliability. The driver accepts input voltages ranging from 90VAC to 295VAC, with an isolation voltage of 3.75 kV. It offers PWM dimming capabilities. This component is suitable for applications in general lighting and commercial displays. The unit measures 4.51" L x 2.85" W x 0.79" H (114.5mm x 72.5mm x 20.0mm) and terminates via a terminal block. It operates within an ambient temperature range of -20°C to 45°C and holds CB, CCC, CE, cURus, and ENEC approvals.
Additional Information
Series: IDPV-25 (25W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, SCP |
| Packaging | Box |
| Size / Dimension | 4.51"" L x 2.85"" W x 0.79"" H (114.5mm x 72.5mm x 20.0mm) |
| Voltage - Output | 24V |
| Type | Constant Voltage |
| Operating Temperature | -20°C ~ 45°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 81% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.05A |
| Dimming | PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 25 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
