IDPV-25A-12
LED POWER SUPPLIES 21.6W 12V 1.8Manufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. IDPV-25 (25W) constant voltage LED driver. This AC DC converter features a 12V output with a maximum current of 1.8A, delivering 21.6W. The unit operates from a 90-295VAC input range, offering 3.75 kV isolation. Designed with OCP and SCP protections, it achieves 80% efficiency. The IDPV-25A-12 supports PWM dimming and is housed in a compact form factor measuring 4.51" x 2.85" x 0.79" with terminal block connections. Approved by CB, CCC, CE, cURus, and ENEC, this component is suitable for applications in general lighting and signage.
Additional Information
Series: IDPV-25 (25W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, SCP |
| Packaging | Box |
| Size / Dimension | 4.51"" L x 2.85"" W x 0.79"" H (114.5mm x 72.5mm x 20.0mm) |
| Voltage - Output | 12V |
| Type | Constant Voltage |
| Operating Temperature | -20°C ~ 45°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 80% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.8A |
| Dimming | PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 22 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
IDPV-25-12
LED POWER SUPPLIES 21.6W 12V 1.8

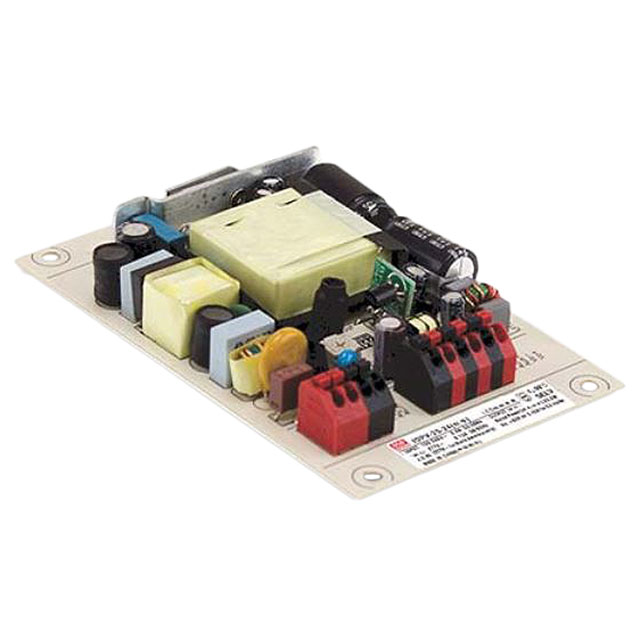

IDPV-25-24
