IDPC-45A-350
LED DRVR CC AC/DC 57-95V 350MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

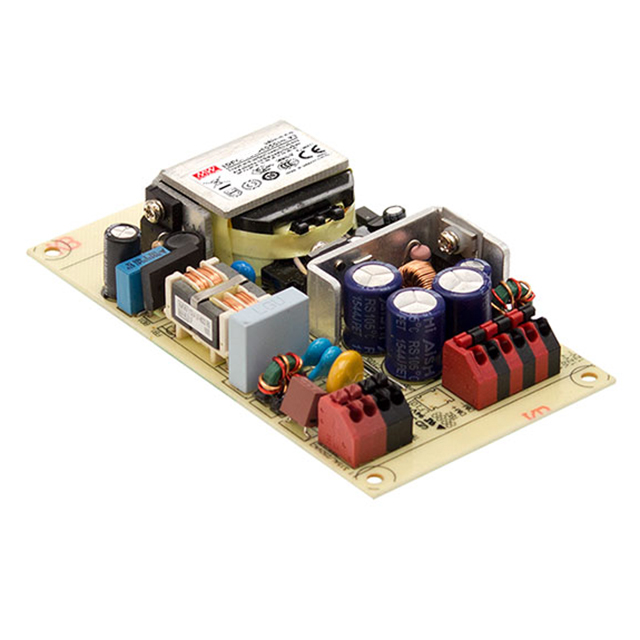

MEAN WELL USA Inc. IDPC-45A-350 is a 45W Constant Current LED Driver. This AC/DC converter features a single output with a 350mA maximum current rating and an adjustable output voltage range of 57V to 95V. The driver supports both analog and PWM dimming methods. With an efficiency of 86% and a power rating of 33W, it operates within an input voltage range of 90VAC to 295VAC. The unit provides 3.75 kV isolation and includes short circuit protection (SCP). Its dimensions are 120.0mm x 66.5mm x 25.0mm, with terminal block termination. This component is suitable for applications in general lighting and industrial lighting. It holds multiple approvals including CB, CCC, CE, cURus, and ENEC.
Additional Information
Series: IDPC-45 (45W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Box |
| Size / Dimension | 4.72"" L x 2.62"" W x 0.98"" H (120.0mm x 66.5mm x 25.0mm) |
| Voltage - Output | 57 ~ 95V |
| Type | Constant Current |
| Operating Temperature | -20°C ~ 40°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 86% |
| Topology | AC DC Converter |
| Current - Output (Max) | 350mA |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 33 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
