IDPC-25-700
LED DRVR CC AC/DC 25.2-36V 700MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. IDPC-25-700 is a 25W constant current AC/DC LED driver from the IDPC-25 series. This driver provides a single output with a configurable current of 700mA and an output voltage range of 25.2V to 36V. Featuring analog and PWM dimming capabilities, it offers an efficiency of 81.5% and operates within an input voltage range of 90VAC to 295VAC. The unit includes short circuit protection (SCP) and boasts 3.75 kV isolation voltage. Its compact dimensions of 114.5mm x 72.5mm x 20.0mm and terminal block termination style facilitate integration into various systems. Approved by CB, CCC, CE, cURus, and ENEC, this driver is suitable for applications in general lighting and architectural lighting.
Additional Information
Series: IDPC-25 (25W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Box |
| Size / Dimension | 4.51"" L x 2.85"" W x 0.79"" H (114.5mm x 72.5mm x 20.0mm) |
| Voltage - Output | 25.2 ~ 36V |
| Type | Constant Current |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 81.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 700mA |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 25 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

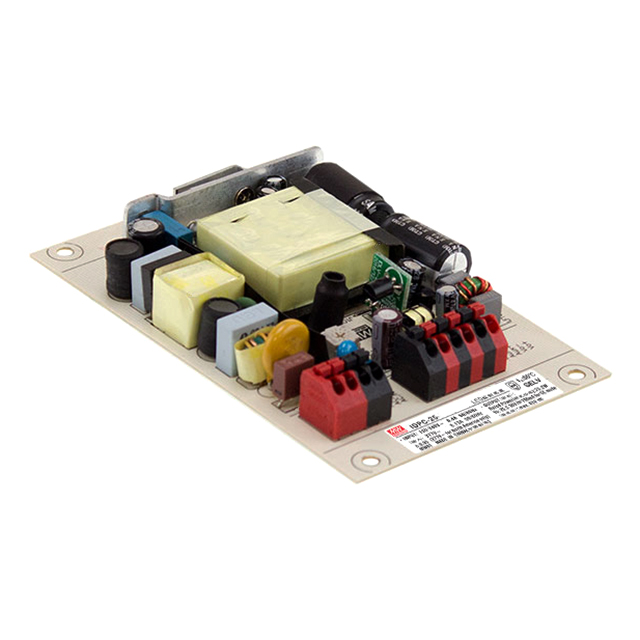

IDPC-25-1050
