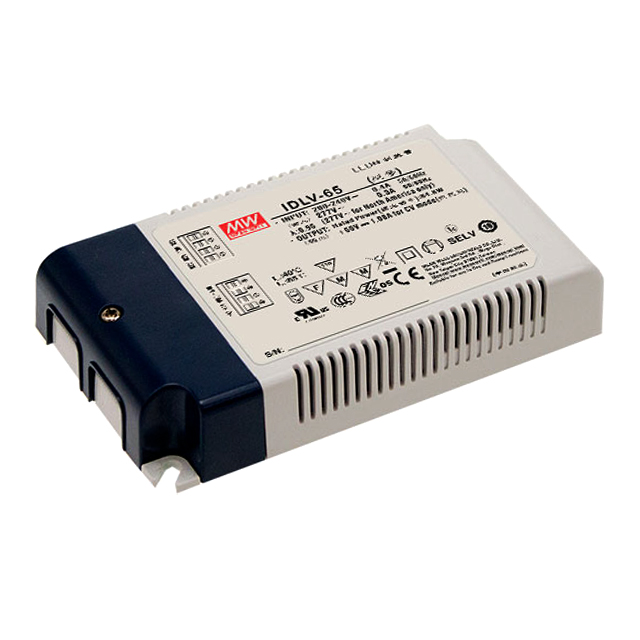

IDLV-65-12
LED DRIVER CV AC/DC 12V 4.2AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
The MEAN WELL USA Inc. IDLV-65-12 is a 65W Constant Voltage AC/DC LED driver, delivering 12V at a maximum output current of 4.2A. This single-output converter features a wide input voltage range of 180VAC to 295VAC, with an isolation voltage of 3.75 kV. The IDLV-65 series driver offers analog and PWM dimming capabilities and includes built-in Over Voltage Protection (OVP) and Short Circuit Protection (SCP) for enhanced reliability. With an efficiency of 85%, this driver is suitable for applications in signage, general lighting, and architectural lighting. It is designed with terminal block termination and operates within an ambient temperature range of -20°C to 85°C. The unit measures 130.0mm x 75.0mm x 25.0mm and carries approvals from CB, CCC, CE, cURus, and ENEC.
Additional Information
Series: IDLV-65 (65W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OVP, SCP |
| Packaging | Box |
| Size / Dimension | 5.12"" L x 2.95"" W x 0.98"" H (130.0mm x 75.0mm x 25.0mm) |
| Voltage - Output | 12V |
| Type | Constant Voltage |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 85% |
| Topology | AC DC Converter |
| Current - Output (Max) | 4.2A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 50 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

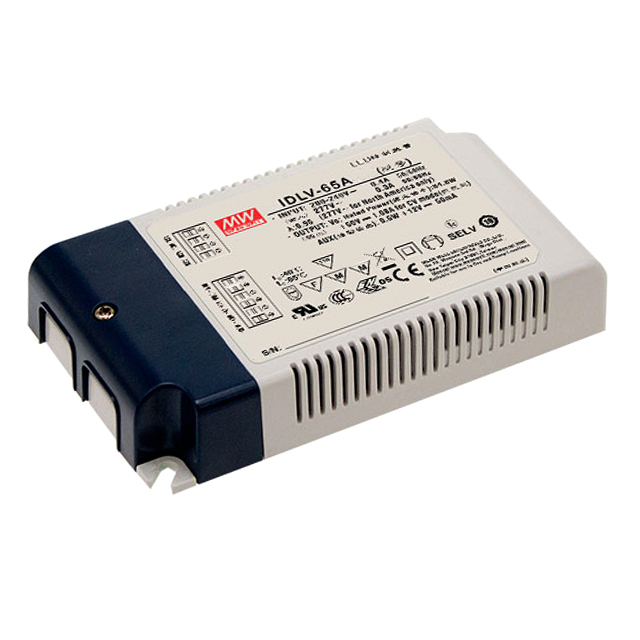

IDLV-65-24
