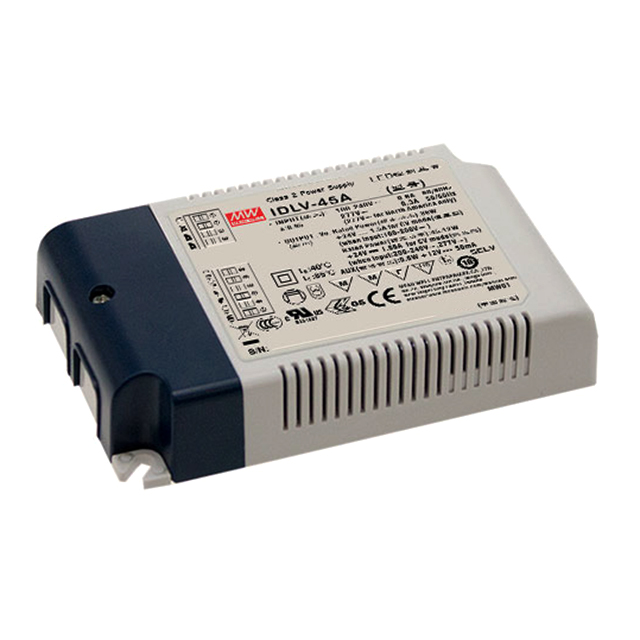

IDLV-45A-48
LED DRIVER CV AC/DC 48V 940MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
The MEAN WELL USA Inc. IDLV-45 (45W) series, part number IDLV-45A-48, is a 45W AC/DC constant voltage LED driver. This single-output unit delivers 48V at a maximum current of 940mA. Featuring a topology 1 output, it operates across an input voltage range of 90VAC to 295VAC, with a maximum input of 295VAC. The driver offers an efficiency of 88% and includes over-current protection (OCP) and short-circuit protection (SCP) for enhanced reliability. It supports analog and PWM dimming methods. The unit is designed with a terminal block termination style and measures 4.72 inches (120.0mm) in length, 2.95 inches (75.0mm) in width, and 0.98 inches (25.0mm) in height. Isolation voltage is rated at 3.75 kV. This component is suitable for applications requiring reliable constant voltage LED power, including general lighting and signage. It holds approvals from CB, CCC, CE, cURus, and ENEC.
Additional Information
Series: IDLV-45 (45W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, SCP |
| Packaging | Box |
| Size / Dimension | 4.72"" L x 2.95"" W x 0.98"" H (120.0mm x 75.0mm x 25.0mm) |
| Voltage - Output | 48V |
| Type | Constant Voltage |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 88% |
| Topology | AC DC Converter |
| Current - Output (Max) | 940mA |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 45 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
