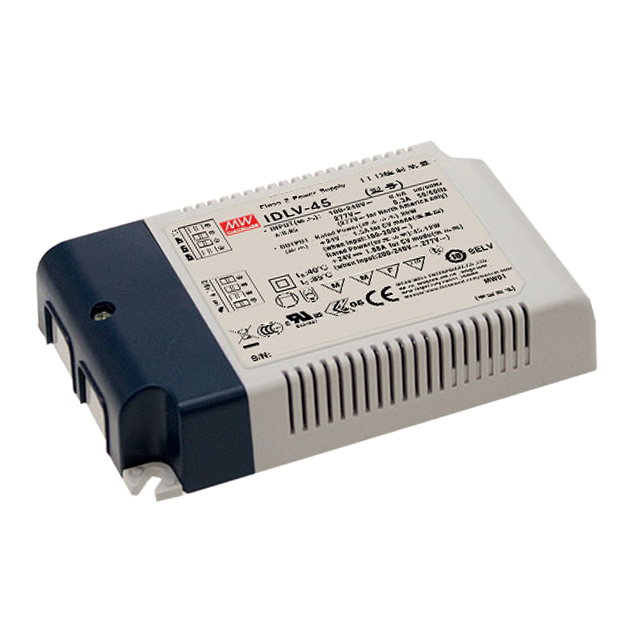

IDLV-45-12
LED DRIVER CV AC/DC 12V 3AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. IDLV-45-12 is a 45W Constant Voltage AC/DC LED driver with a 12V output and a maximum current of 3A. This unit features an AC DC Converter topology and offers analog and PWM dimming capabilities. With an efficiency of 84% and an operating temperature range of -20°C to 85°C, it is suitable for demanding applications. Protection features include Over Current Protection (OCP) and Short Circuit Protection (SCP). The driver achieves 3.75 kV isolation voltage and supports input voltages from 90VAC to 295VAC. Its compact dimensions are 120.0mm x 75.0mm x 25.0mm, with termination via terminal blocks. The IDLV-45 series is utilized across various industries including architectural lighting, commercial displays, and signage. It holds certifications from CB, CCC, CE, cURus, and ENEC.
Additional Information
Series: IDLV-45 (45W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, SCP |
| Packaging | Box |
| Size / Dimension | 4.72"" L x 2.95"" W x 0.98"" H (120.0mm x 75.0mm x 25.0mm) |
| Voltage - Output | 12V |
| Type | Constant Voltage |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 84% |
| Topology | AC DC Converter |
| Current - Output (Max) | 3A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 36 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
