IDLV-25-24
LED POWER SUPPLIES 25.2W 24V 1.0Manufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

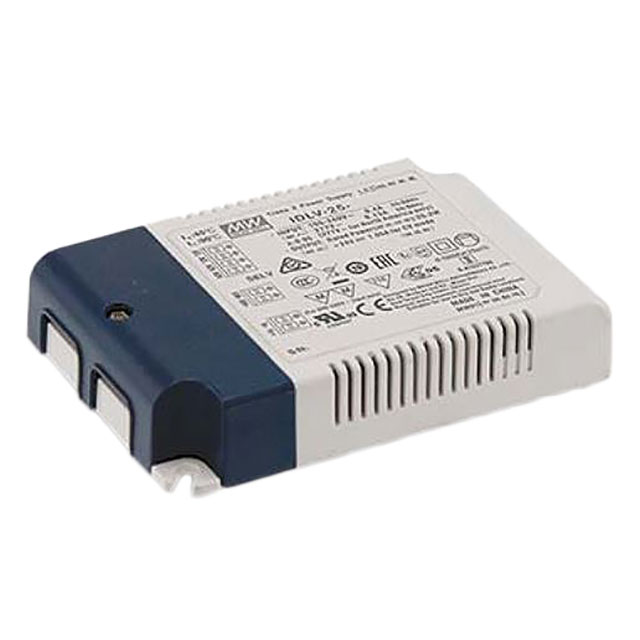

MEAN WELL USA Inc. IDLV-25-24 is a 25W constant voltage LED driver, operating as an AC/DC converter with a single output. This unit delivers 24V at a maximum current of 1.05A, featuring PWM dimming capability. With an efficiency of 81% and protection against Over Current (OCP) and Short Circuit (SCP), it is designed for reliability. The IDLV-25 series component has a compact footprint of 110.0mm x 75.0mm x 22.0mm and utilizes terminal block termination. It operates within an input voltage range of 90VAC to 295VAC, with 3.75 kV isolation. Approvals include CB, CCC, CE, cURus, EAC, ENEC, and RCM, making it suitable for general lighting and industrial automation applications.
Additional Information
Series: IDLV-25 (25W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, SCP |
| Packaging | Box |
| Size / Dimension | 4.33"" L x 2.95"" W x 0.87"" H (110.0mm x 75.0mm x 22.0mm) |
| Voltage - Output | 24V |
| Type | Constant Voltage |
| Operating Temperature | -20°C ~ 90°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC, RCM |
| Ratings | - |
| Efficiency | 81% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.05A |
| Dimming | PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 25 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
