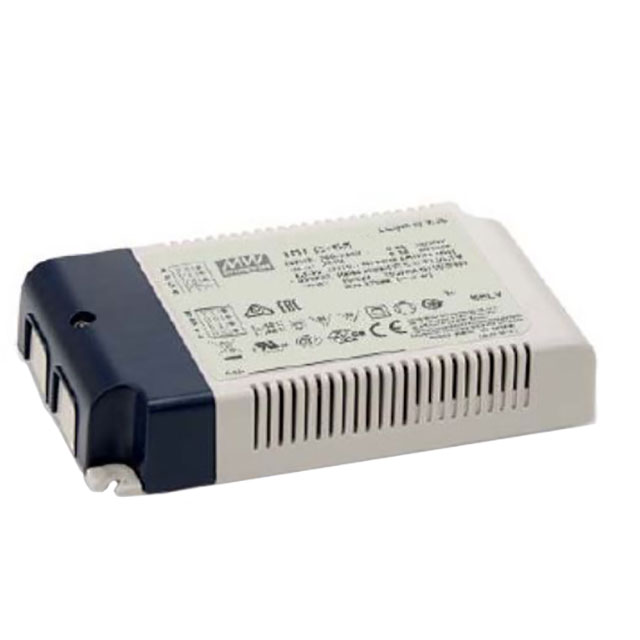

IDLC-65-700DA
LED DRVR CC AC/DCManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. IDLC-65-700DA is a 65W constant current LED driver. This AC/DC converter features a single output delivering 1.05A at a voltage range of 27-36V. The IDLC-65 series driver operates with an input voltage from 180VAC to 295VAC, achieving 86% efficiency. It supports analog and PWM dimming and includes short circuit protection (SCP). With 3.75 kV isolation voltage and a compact footprint of 130.0mm x 75.0mm x 25.0mm, it is suitable for demanding applications across various industries. The unit terminates via terminal blocks and meets standards including UL 8750, CB, CCC, CE, cURus, EAC, ENEC, and RCM. Operating temperature range is -20°C to 85°C.
Additional Information
Series: IDLC-65 (65W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Box |
| Size / Dimension | 5.12"" L x 2.95"" W x 0.98"" H (130.0mm x 75.0mm x 25.0mm) |
| Voltage - Output | 27 ~ 36V |
| Type | Constant Current |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC, RCM |
| Ratings | - |
| Efficiency | 86% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.05A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 63 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Standard Number | UL 8750 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

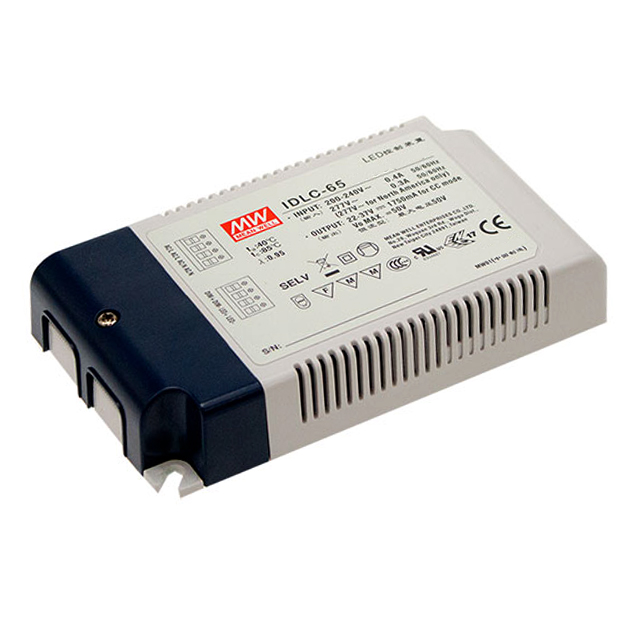

IDLC-65-1050
LED DRVR CC AC/DC 46-62V 1.05A

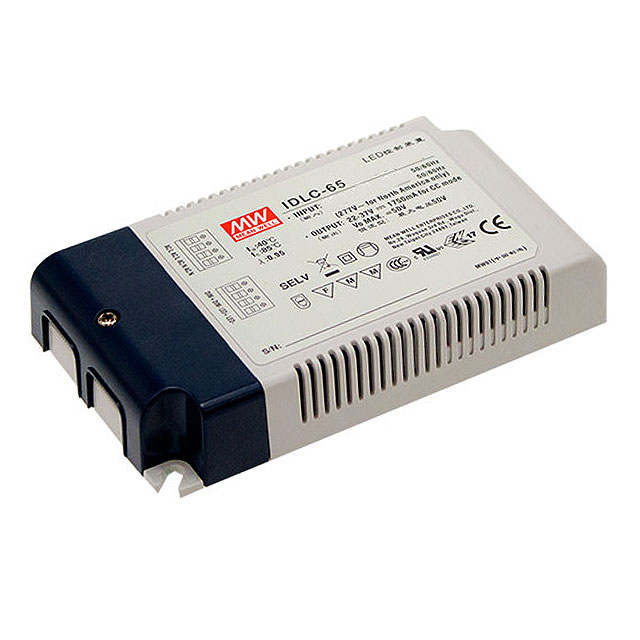

IDLC-65-1050DA
