IDLC-45-350
LED DRVR CC AC/DC 57-95V 350MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. IDLC-45-350 is a 45W Constant Current LED Driver featuring a 57-95V output range with a maximum output current of 350mA. This AC/DC converter topology, part of the IDLC-45 series, offers analog and PWM dimming capabilities and achieves an efficiency of 86%. The unit is designed for single output and includes short circuit protection (SCP). Its dimensions are 120.0mm x 75.0mm x 25.0mm, with terminal block termination. Operating across an input voltage range of 90-295VAC, it provides 3.75 kV isolation. This component is suitable for applications in general lighting, architectural lighting, and industrial lighting systems. Approvals include CB, CCC, CE, cURus, and ENEC.
Additional Information
Series: IDLC-45 (45W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Box |
| Size / Dimension | 4.72"" L x 2.95"" W x 0.98"" H (120.0mm x 75.0mm x 25.0mm) |
| Voltage - Output | 57 ~ 95V |
| Type | Constant Current |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 86% |
| Topology | AC DC Converter |
| Current - Output (Max) | 350mA |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 33 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

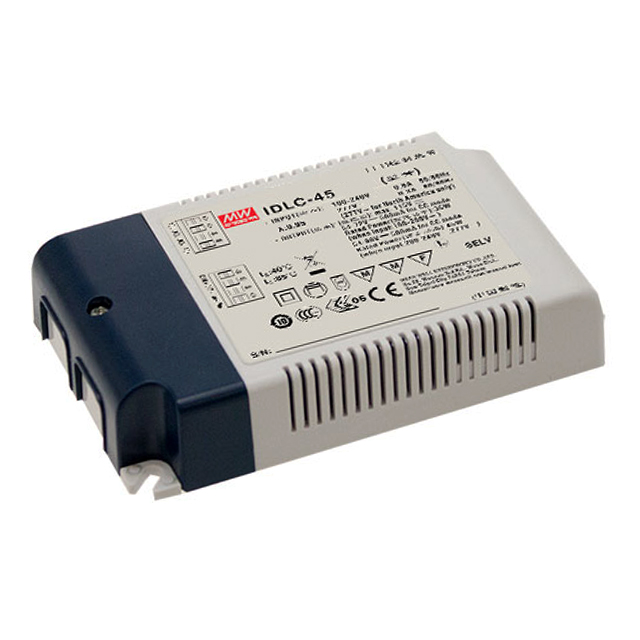

IDLC-45-1050
LED DRVR CC AC/DC 26-43V 1.05A

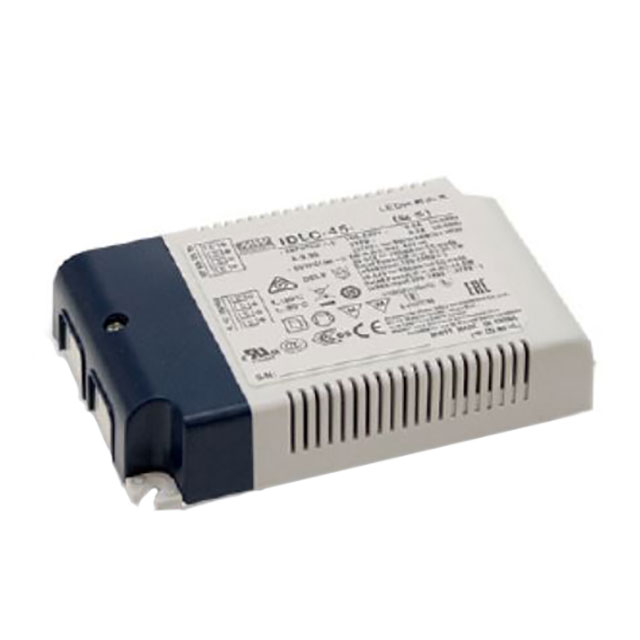

IDLC-45-1050DA
