IDLC-25A-350
LED DRVR CC AC/DC 49-70V 350MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. IDLC-25A-350 is a 25W Constant Current LED Driver from the IDLC-25 series. This AC/DC converter features a single output delivering 350mA with an adjustable voltage range of 49V to 70V. With an efficiency of 82%, it offers analog and PWM dimming capabilities and includes short-circuit protection (SCP). The unit operates from 90VAC to 295VAC input and provides 3.75 kV isolation. Its compact dimensions are 110.0mm x 75.0mm x 22.0mm, terminating via a terminal block. This driver is suitable for applications requiring reliable, regulated power for LED arrays, commonly found in general lighting and architectural illumination systems. Approvals include CB, CCC, CE, cURus, and ENEC.
Additional Information
Series: IDLC-25 (25W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Box |
| Size / Dimension | 4.33"" L x 2.95"" W x 0.87"" H (110.0mm x 75.0mm x 22.0mm) |
| Voltage - Output | 49 ~ 70V |
| Type | Constant Current |
| Operating Temperature | -20°C ~ 90°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 82% |
| Topology | AC DC Converter |
| Current - Output (Max) | 350mA |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 25 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

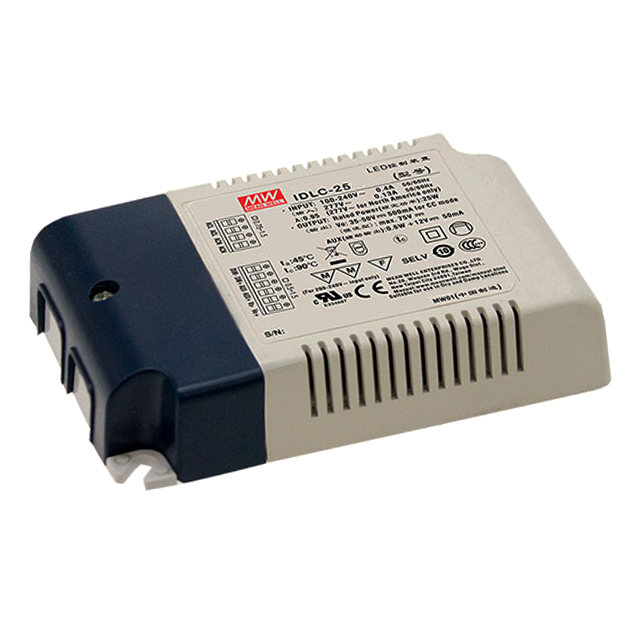

IDLC-25-1050
