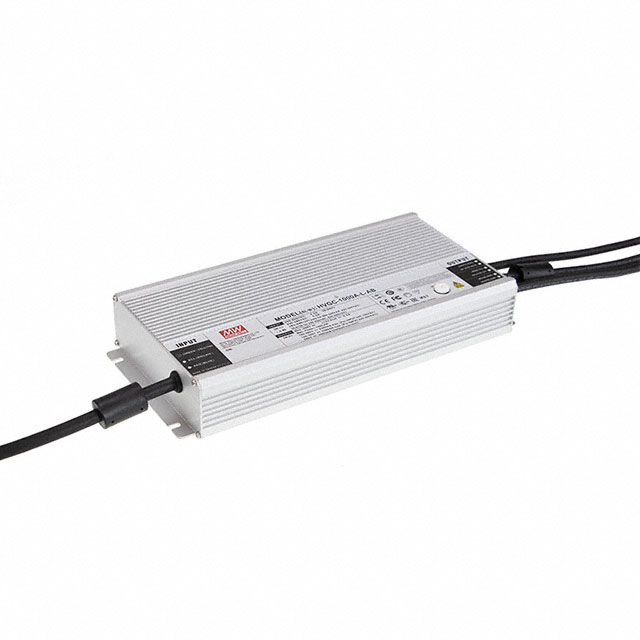

HVGC-1000A-H-AB
1000W WIDE RANGE INPUT CONSTANTManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
5.6A 70 ~ 180V Constant Current LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: HVGC-1000 (1000W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 12.20"" L x 5.67"" W x 1.91"" H (310.0mm x 144.0mm x 48.5mm) |
| Voltage - Output | 70 ~ 180V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 90°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 528VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC, FCC, RCM |
| Ratings | IP67 |
| Efficiency | 96% |
| Topology | AC DC Converter |
| Current - Output (Max) | 5.6A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 1008 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3 kV |
| Programmable | Not Verified |
Request a Quote
