HVGC-100-350B
LED DRVR CC AC/DC 29-285V 350MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

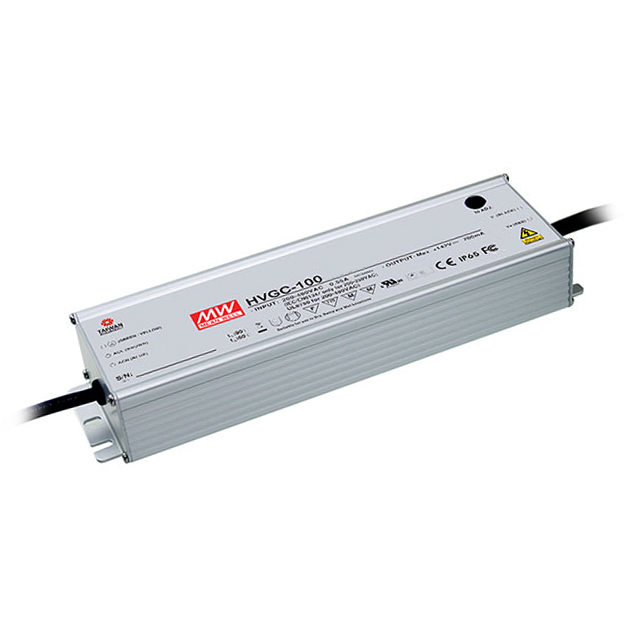

MEAN WELL USA Inc. HVGC-100 series 100W constant current LED driver, part number HVGC-100-350B. This AC/DC converter features a single output with selectable constant current at 350mA, capable of driving LED arrays from 29V to 285V. Designed for high reliability, it offers an input voltage range of 180VAC to 528VAC and boasts 91% efficiency. Protection features include OTP, OVP, and SCP for robust operation. The unit is rated IP67 for environmental resilience and operates across a wide temperature range of -40°C to +90°C. Termination is via wire leads. Approvals include CB, CE, cURus, and TUV. Typical applications include high bay lighting, outdoor lighting, and horticulture lighting.
Additional Information
Series: HVGC-100 (100W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 8.35"" L x 2.68"" W x 1.53"" H (212.0mm x 68.0mm x 38.8mm) |
| Voltage - Output | 29 ~ 285V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 90°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 528VAC |
| Approval Agency | CB, CE, cURus, TUV |
| Ratings | IP67 |
| Efficiency | 91% |
| Topology | AC DC Converter |
| Current - Output (Max) | 350mA |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 100 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
