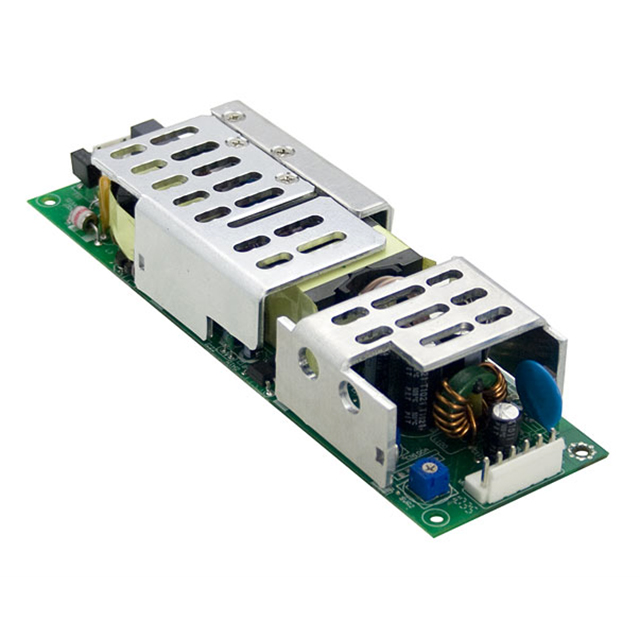

HLP-80H-30
LED DRIVER CC AC/DC 18-30V 2.7AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. HLP-80H-30 is an 81W AC/DC constant current LED driver with a configurable output voltage range of 18-30V and a maximum output current of 2.7A. This 1-output unit operates with a wide input voltage range from 90VAC to 305VAC and features an efficiency of 90%. The topology is an AC/DC converter, providing reliable power for LED lighting applications. Protection features include Over Current Protection (OCP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP). The driver supports analog and PWM dimming for precise light control. Its dimensions are 167.0mm x 53.0mm x 29.5mm, and it utilizes a 6-position termination style. The HLP-80H series is commonly employed in general lighting, industrial lighting, and architectural lighting sectors. It holds approvals from CB, CCC, CE, cURus, and TUV, ensuring compliance with various international standards.
Additional Information
Series: HLP-80H (80W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 6.57"" L x 2.09"" W x 1.16"" H (167.0mm x 53.0mm x 29.5mm) |
| Voltage - Output | 18 ~ 30V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | Rectangular, 6 Position |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, TUV |
| Ratings | - |
| Efficiency | 90% |
| Topology | AC DC Converter |
| Current - Output (Max) | 2.7A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 81 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
