HLP-60H-48
LED DRVR CC AC/DC 28.8-48V 1.3AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. HLP-60H-48 is a 60W constant current AC/DC LED driver. This single-output converter provides an adjustable current range of 28.8V to 48V at a maximum of 1.3A. Featuring high efficiency up to 90.5%, it operates across a wide input voltage range of 90VAC to 305VAC. The unit offers analog and PWM dimming capabilities and includes comprehensive protection features for over-current (OCP), over-temperature (OTP), over-voltage (OVP), and short-circuit (SCP). With a 3.75 kV isolation voltage and an operating temperature range of -40°C to 70°C, the HLP-60H-48 is suitable for demanding applications in signage, architectural lighting, and industrial illumination. Approval agencies include CB, CCC, CE, TUV, and UR. The driver is housed in a compact form factor with a 6-position rectangular termination style.
Additional Information
Series: HLP-60H (60W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 5.80"" L x 2.09"" W x 1.06"" H (147.2mm x 53.0mm x 27.0mm) |
| Voltage - Output | 28.8 ~ 48V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | Rectangular, 6 Position |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, TUV, UR |
| Ratings | - |
| Efficiency | 90.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.3A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 62 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

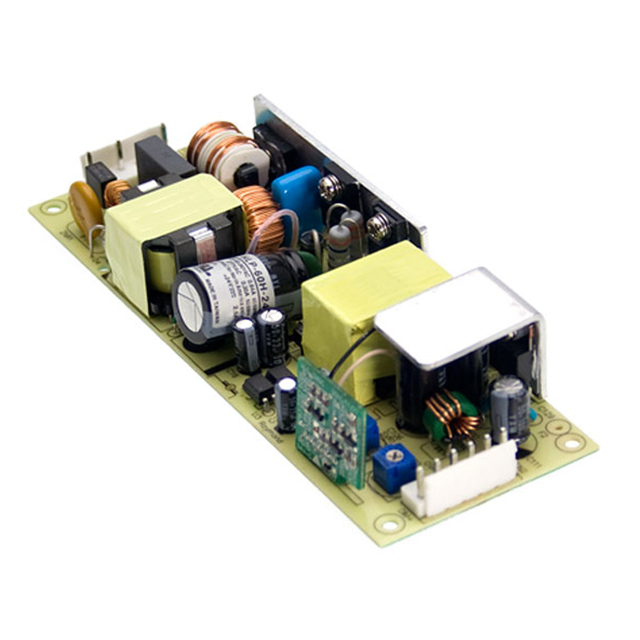

HLP-60H-15
