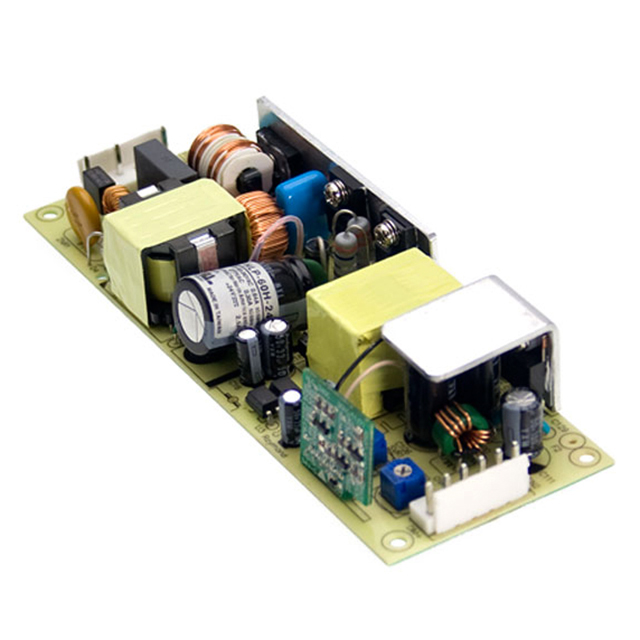

HLP-40H-36
LED DRVR CC AC/DC 21.6-36V 1.12AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. HLP-40H series constant current LED driver, model HLP-40H-36. This 40W AC/DC converter provides a single output with a current range of 21.6V to 36V at a maximum of 1.12A. It features analog and PWM dimming capabilities, along with comprehensive protection circuits including OCP, OTP, OVP, and SCP. The unit boasts an efficiency of 89% and an input voltage range of 90VAC to 305VAC, with an isolation voltage of 3.75 kV. Designed for robust operation, it functions across an ambient temperature range of -40°C to 70°C. Termination is via a 6-position rectangular connector. Approvals include CB, CCC, CE, cURus, and TUV. This component is suitable for applications in general lighting and architectural lighting.
Additional Information
Series: HLP-40H (40W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 5.79"" L x 2.09"" W x 1.06"" H (147.0mm x 53.0mm x 27.0mm) |
| Voltage - Output | 21.6 ~ 36V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | Rectangular, 6 Position |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, TUV |
| Ratings | - |
| Efficiency | 89% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.12A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 40 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
