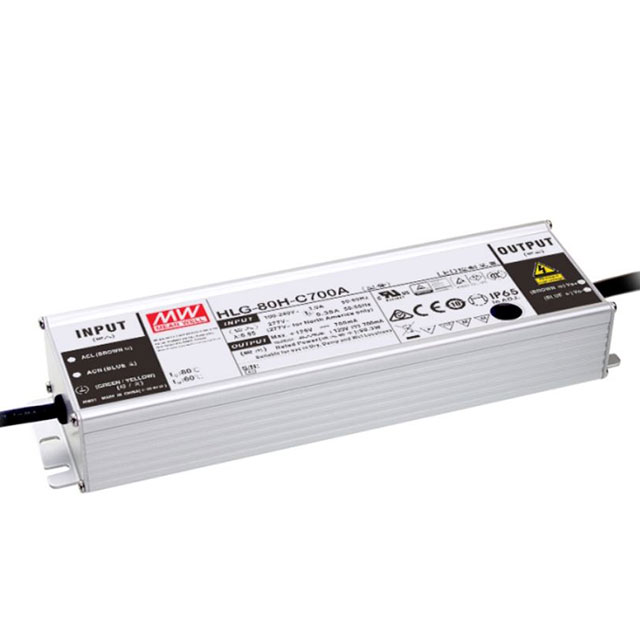

HLG-80H-C700AB
LED DRVR CC/CV AC/DCManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
700mA 64 ~ 129V Constant Current LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: HLG-80H-C (90W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 6.76"" L x 2.42"" W x 1.53"" H (171.8mm x 61.5mm x 38.8mm) |
| Voltage - Output | 64 ~ 129V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 80°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, RCM, TUV |
| Ratings | IP65 |
| Efficiency | 91.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 700mA |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 90 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
