HLG-480H-30D2
PWR SUPP, BATT & CONDManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. HLG-480H-30D2 is a 479W constant current, voltage LED driver with a 16A maximum output current and a 30V output voltage. This AC DC converter topology features a single output and operates with an input voltage range of 90VAC to 305VAC. The HLG-480H series driver boasts up to 95% efficiency and includes comprehensive protection features such as OCP, OTP, OVP, and SCP. It supports analog and PWM dimming and is designed for robust performance with an operating temperature range of -40°C to 90°C (with derating). The unit is rated IP65, ensuring protection against dust and water ingress, and features wire lead termination. Isolation voltage is rated at 3.75 kV. This driver is suitable for applications in general lighting and architectural lighting.
Additional Information
Series: HLG-480HRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Bulk |
| Size / Dimension | 9.26"" L x 4.92"" W x 1.72"" H (235.2mm x 125.0mm x 43.8mm) |
| Voltage - Output | 30V |
| Type | Constant Current, Voltage |
| Operating Temperature | -40°C ~ 90°C (With Derating) |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, EAC, ENEC, KC, PSE, RCM |
| Ratings | IP65 |
| Efficiency | 95% |
| Topology | AC DC Converter |
| Current - Output (Max) | 16A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 479 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Standard Number | - |
Request a Quote
Clients Also Buy

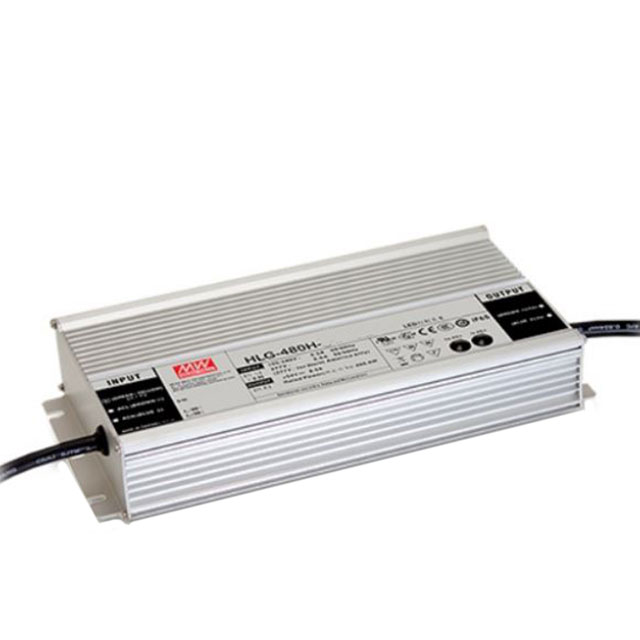

HLG-480H-24AB
