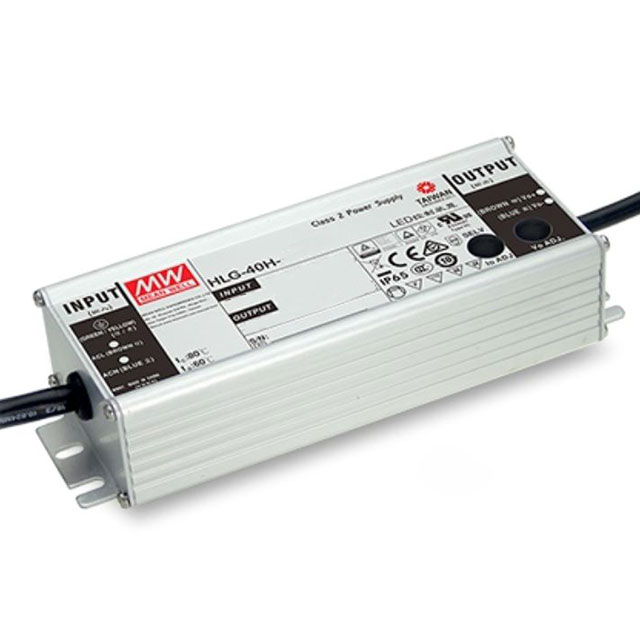

HLG-40H-42AB
O/P +42V0.96AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
960mA 42V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: HLG-40H (40W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 5.80"" L x 2.42"" W x 1.45"" H (147.2mm x 61.5mm x 36.8mm) |
| Voltage - Output | 42V |
| Type | Constant Current, Voltage |
| Operating Temperature | -40°C ~ 80°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, KC, PSE, RCM, TUV |
| Ratings | IP65 |
| Efficiency | 88.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 960mA |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 40 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
