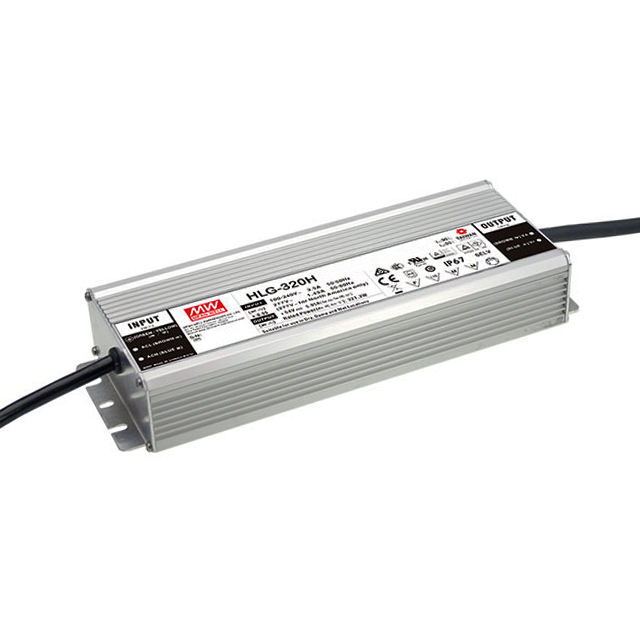

HLG-320H-42
LED DVR CC/CV AC/DC 42V 7.65AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
7.65A 42V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: HLG-320H (320W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 8.87"" L x 3.54"" W x 1.72"" H (225.2mm x 90.0mm x 43.8mm) |
| Voltage - Output | 42V |
| Type | Constant Current, Voltage |
| Operating Temperature | -40°C ~ 90°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, PSE, RCM, TUV |
| Ratings | IP67 |
| Efficiency | 95% |
| Topology | AC DC Converter |
| Current - Output (Max) | 7.65A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 321 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
HLG-320H-12
LED DRVR CC/CV AC/DC 12V 22A

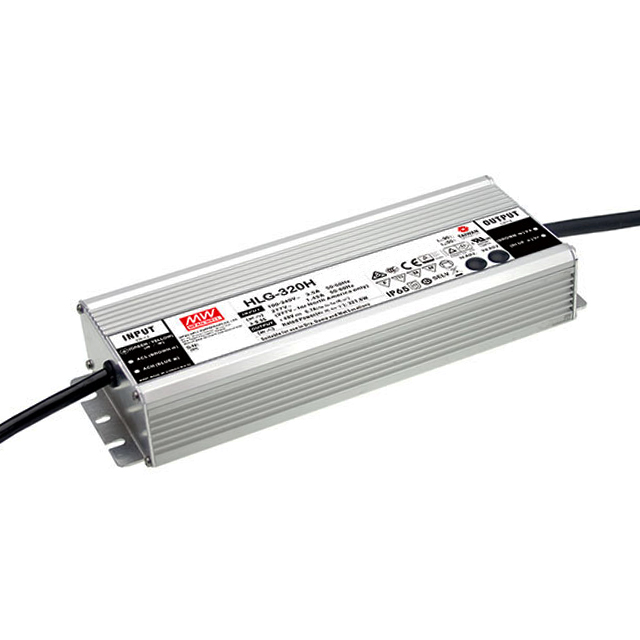

HLG-320H-12A
LED DVR CCCV ACDC 10.8-13.5V 22A

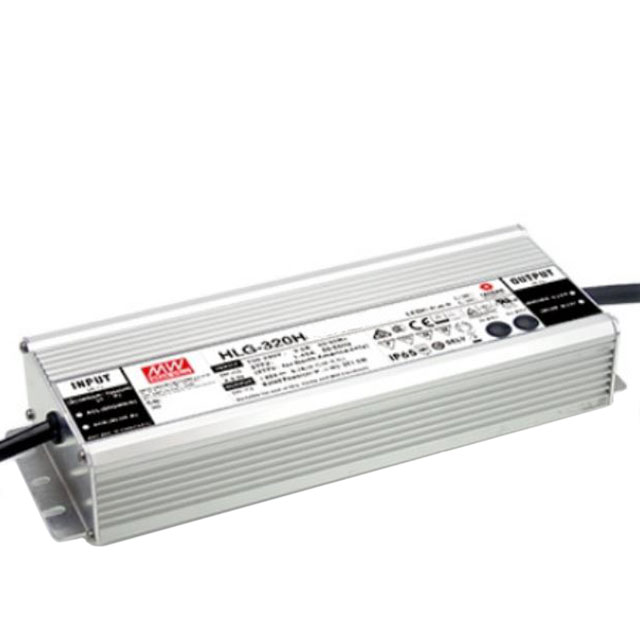

HLG-320H-12AB
