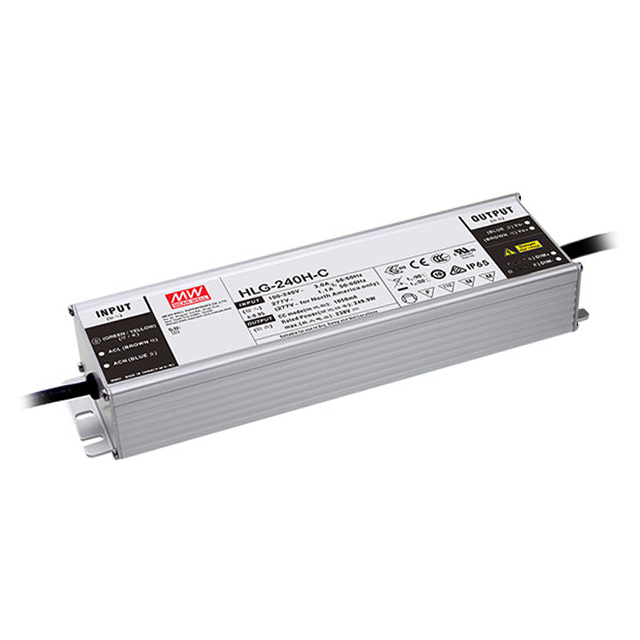

HLG-240H-C1400B
LED DRVR CC AC/DC 89-179V 1.4AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
1.4A 89 ~ 179V Constant Current LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: HLG-240H (240W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 8.67"" L x 2.68"" W x 1.53"" H (220.2mm x 68.0mm x 38.8mm) |
| Voltage - Output | 89 ~ 179V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 90°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC, RCM |
| Ratings | IP67 |
| Efficiency | 94% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.4A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 251 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
