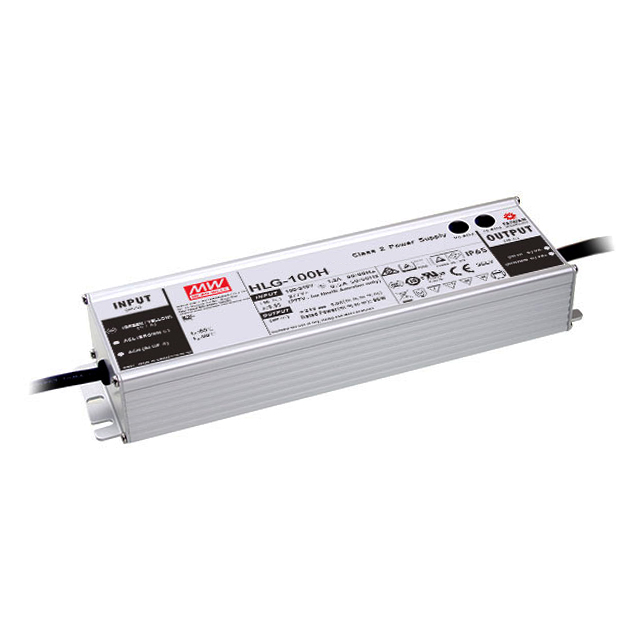

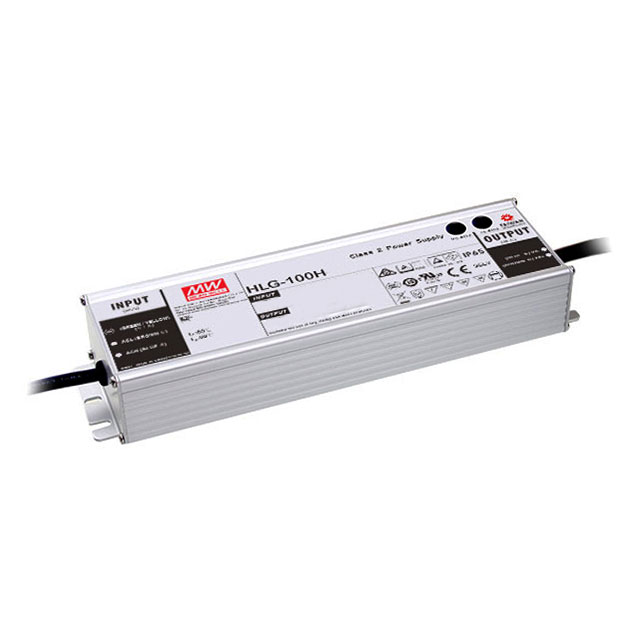

HLG-100H-54B
LED DVR CC/CV AC/DC 27-54V 1.77AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
1.77A 27 ~ 54V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: HLG-100H (100W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 7.72"" L x 2.68"" W x 1.53"" H (196.0mm x 68.0mm x 38.8mm) |
| Voltage - Output | 27 ~ 54V |
| Type | Constant Current, Voltage |
| Operating Temperature | -40°C ~ 80°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, PSE, RCM, TUV |
| Ratings | IP67 |
| Efficiency | 93% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.77A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 96 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
